Timken SMN207KB
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
Heavy-Duty
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Non-Relubricatable
O.D. Type
Spherical OD
Sub Series
SMN..KB
Collar No.
SN207K
Basic Outer Ring Size
312W

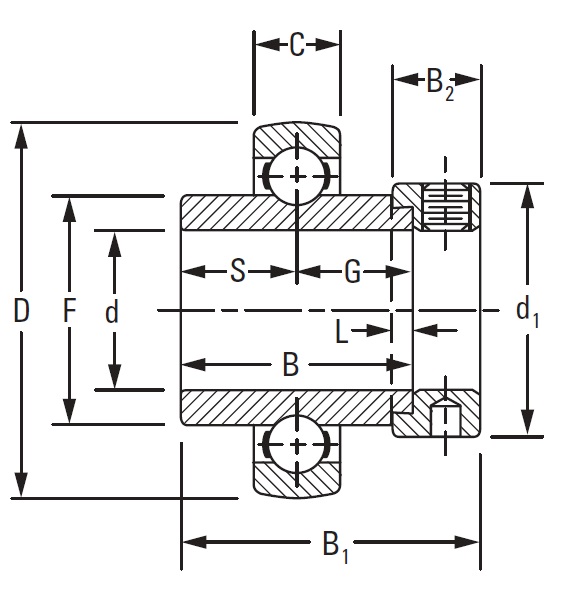

Dimensions
Outside Diameter D
130 mm
Inner Ring Width B
61.91 mm
Outside Ring Width C
31 mm
Radius r
0.6 mm
Center of Bearing from End S
31 mm
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
88.9 mm
Dimension B1
79.38 mm
Dimension B2
23.81 mm
Dimension F
81.53 mm
Dimension G
31 mm
Dimension L
6.4 mm
Basic Load Ratings
Static Load Rating
51480 N
Dynamic Load Rating
89800 N
