Timken SMN211KS
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Series
Heavy-Duty
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Non-Relubricatable
O.D. Type
Cylindrical OD
Sub Series
SMN..KS
Collar No.
SO211K
Basic Outer Ring Size
314

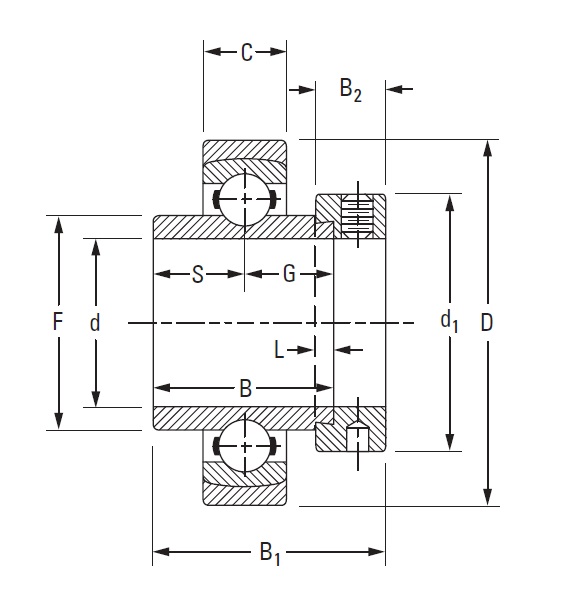

Dimensions
Outside Diameter D
165 mm
Inner Ring Width B
68.26 mm
Outside Ring Width C
35 mm
Radius r
0.6 mm
Center of Bearing from End S
34.1 mm
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
101.6 mm
Dimension B1
92.1 mm
Dimension B2
27 mm
Dimension F
94.7 mm
Dimension G
34.1 mm
Dimension L
6.4 mm
Basic Load Ratings
Static Load Rating
66800 N
Dynamic Load Rating
116000 N
