Timken SMN303KS
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
Heavy-Duty
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Non-Relubricatable
O.D. Type
Cylindrical OD
Sub Series
SMN..KS
Collar No.
SN303K
Basic Outer Ring Size
316

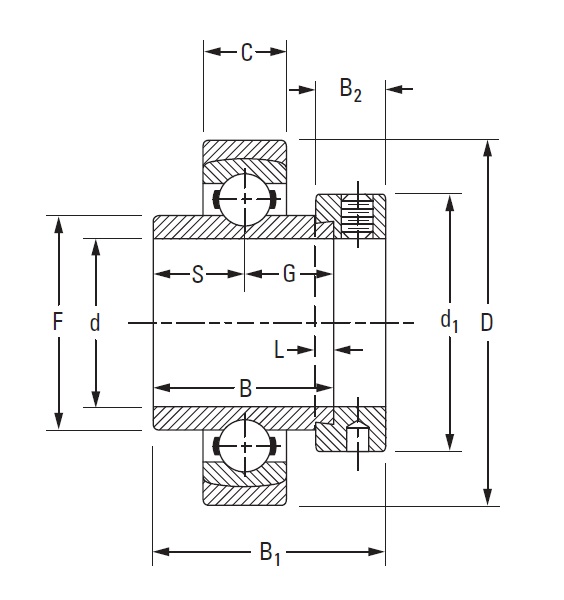

Dimensions
Outside Diameter D
190 mm
Inner Ring Width B
80.96 mm
Outside Ring Width C
39 mm
Radius r
0.6 mm
Center of Bearing from End S
40.5 mm
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
119.1 mm
Dimension B1
106.4 mm
Dimension B2
31.8 mm
Dimension F
106.91 mm
Dimension G
40.5 mm
Dimension L
6.4 mm
Basic Load Ratings
Static Load Rating
86000 N
Dynamic Load Rating
137000 N
