Timken SMN315KB
Fafnir® Eccentric Locking Collar Ball Bearings
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Series
Heavy-Duty
Bore Type
Cylindrical bore
Bearing Type
Ball Bearing
Material
Bearing Steel
Lubrication Type
Non-Relubricatable
O.D. Type
Spherical OD
Sub Series
SMN..KB
Collar No.
SN315K
Basic Outer Ring Size
320

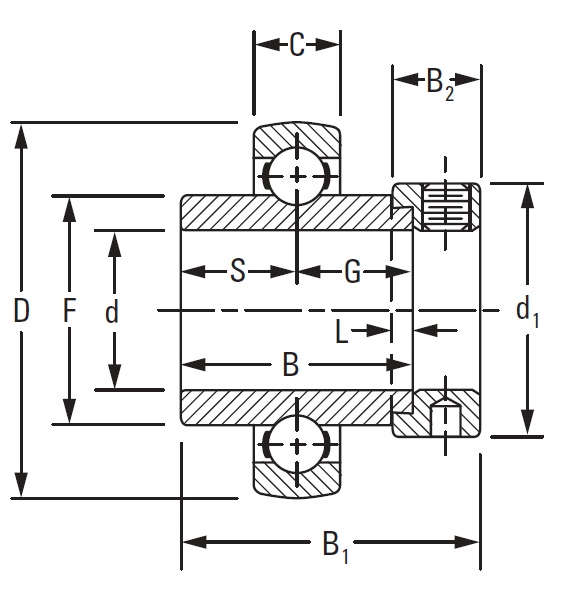

Dimensions
Outside Diameter D
215 mm
Inner Ring Width B
100.01 mm
Outside Ring Width C
47 mm
Radius r
0.6 mm
Center of Bearing from End S
50 mm
Number of Set Screws
2
Angle between Set Screws
90 º
Dimension d1
146.05 mm
Dimension B1
128.59 mm
Dimension B2
36.51 mm
Dimension F
134.77 mm
Dimension G
50 mm
Dimension L
7.94 mm
Basic Load Ratings
Static Load Rating
140300 N
Dynamic Load Rating
193000 N
