INA AXW17
Axial-Needle Roller Bearings
Axial needle roller bearings, single direction, AXK with axial bearing washer
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

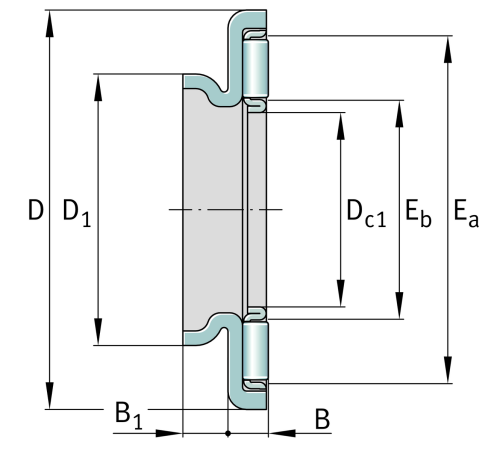

Main Dimensions & Performance Data
Dc1
17 mm
Bore diameter cage
D
33 mm
Outside diameter bearing washer
B
3.2 mm
Height bearing
B1
3.5 mm
Height centering collar
D1
23 mm
Outside diameter centering collar
Ea
29 mm
Raceway dimension
Eb
19 mm
Raceway dimension
C
12,000 N
Basic dynamic load rating, axial
C0a
39,500 N
Basic static load rating, axial
cua
4,000 N
Fatigue load limit, axial
nG
12,300 1/min
Limiting speed
n ϑr
5,800 1/min
Reference speed
≈m
11.54 g
Weight
