INA AXW45
Axial-Needle Roller Bearings
Axial needle roller bearings, single direction, AXK with axial bearing washer
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

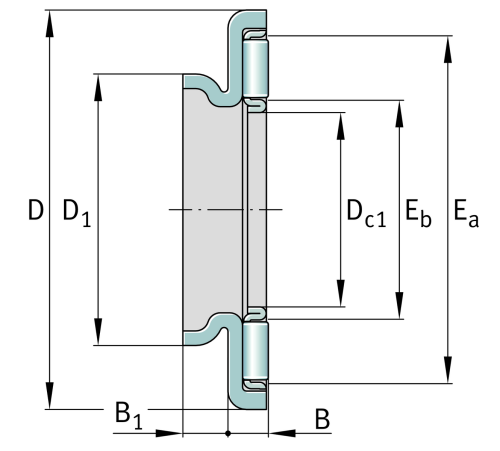

Main Dimensions & Performance Data
Dc1
45 mm
Bore diameter cage
D
68 mm
Outside diameter bearing washer
B
4.2 mm
Height bearing
B1
4 mm
Height centering collar
D1
52 mm
Outside diameter centering collar
Ea
63 mm
Raceway dimension
Eb
50 mm
Raceway dimension
C
30,000 N
Basic dynamic load rating, axial
C0a
128,000 N
Basic static load rating, axial
cua
13,600 N
Fatigue load limit, axial
nG
5,200 1/min
Limiting speed
n ϑr
2,490 1/min
Reference speed
≈m
43.38 g
Weight
