INA AXW35
Axial-Needle Roller Bearings
Axial needle roller bearings, single direction, AXK with axial bearing washer
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

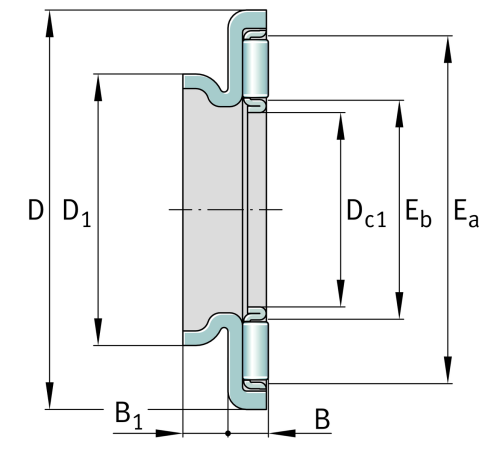

Main Dimensions & Performance Data
Dc1
35 mm
Bore diameter cage
D
55 mm
Outside diameter bearing washer
B
3.2 mm
Height bearing
B1
4 mm
Height centering collar
D1
42 mm
Outside diameter centering collar
Ea
51 mm
Raceway dimension
Eb
39 mm
Raceway dimension
C
17,900 N
Basic dynamic load rating, axial
C0a
81,000 N
Basic static load rating, axial
cua
8,400 N
Fatigue load limit, axial
nG
6,600 1/min
Limiting speed
n ϑr
3,250 1/min
Reference speed
≈m
26.31 g
Weight
