INA AXW50
Axial-Needle Roller Bearings

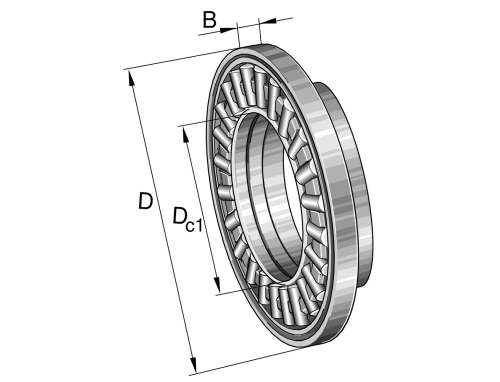

Axial needle roller bearings, single direction, AXK with axial bearing washer
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

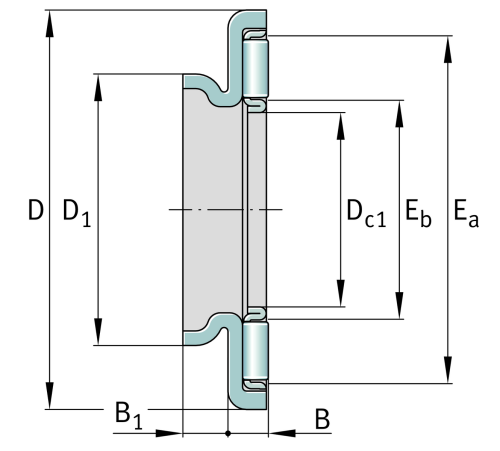

Main Dimensions & Performance Data
Dc1
50 mm
Bore diameter cage
D
73 mm
Outside diameter bearing washer
B
4.2 mm
Height bearing
B1
4.5 mm
Height centering collar
D1
58 mm
Outside diameter centering collar
Ea
68 mm
Raceway dimension
Eb
55 mm
Raceway dimension
C
32,000 N
Basic dynamic load rating, axial
C0a
143,000 N
Basic static load rating, axial
cua
15,100 N
Fatigue load limit, axial
nG
4,800 1/min
Limiting speed
n ϑr
2,230 1/min
Reference speed
≈m
48.94 g
Weight
