INA AXW20
Axial-Needle Roller Bearings
Axial needle roller bearings, single direction, AXK with axial bearing washer
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

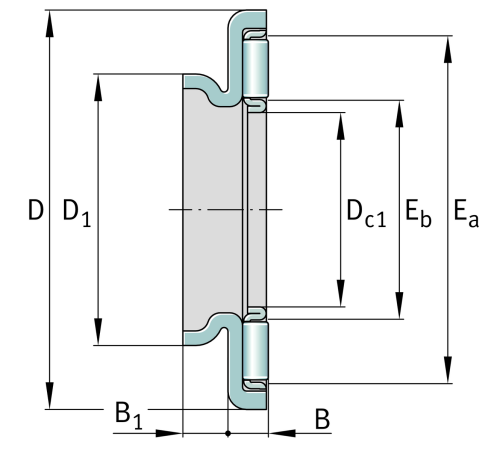

Main Dimensions & Performance Data
Dc1
20 mm
Bore diameter cage
D
38 mm
Outside diameter bearing washer
B
3.2 mm
Height bearing
B1
3.5 mm
Height centering collar
D1
26 mm
Outside diameter centering collar
Ea
34 mm
Raceway dimension
Eb
22 mm
Raceway dimension
C
13,100 N
Basic dynamic load rating, axial
C0a
46,500 N
Basic static load rating, axial
cua
4,800 N
Fatigue load limit, axial
nG
10,500 1/min
Limiting speed
n ϑr
5,300 1/min
Reference speed
≈m
15.15 g
Weight
