INA KR32-PP
Cam Rollers

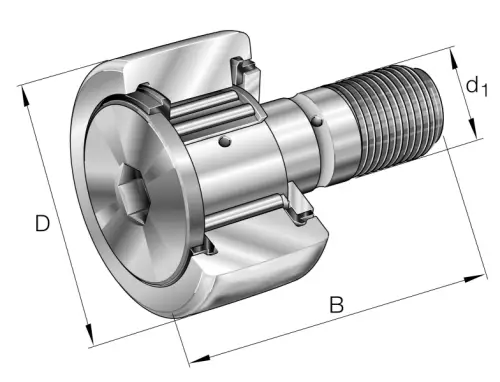

Stud type track rollers KR..-PP, with axial guidance, plastic axial plain washers on both sides, optimized INA-profile
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

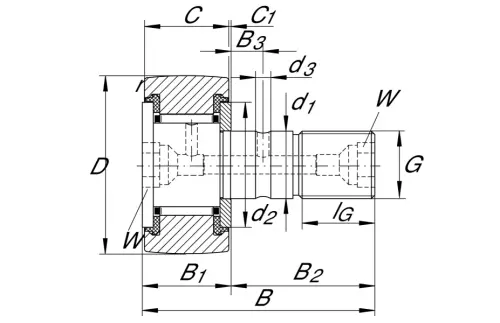

Main Dimensions & Performance Data
D
32 mm
Outside diameter
d1
12 mm
Fit diameter of roller stud / stud
B
40 mm
Width of the roller stud
Cr w
7,100 N
Basic dynamic load rating, radial
C0r w
9,300 N
Basic static load rating, radial
Cur w
1,320 N
Fatigue load limit, radial
nD G
5,500 1/min
Speed on permanent grease lubrication
≈m
0.094 kg
Weight
