INA NUKRE62
Cam Rollers
Stud type track rollers NUKRE, with axial guidance, full complement cylindrical roller set, with eccentric collar, labyrinth seals on both sides
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

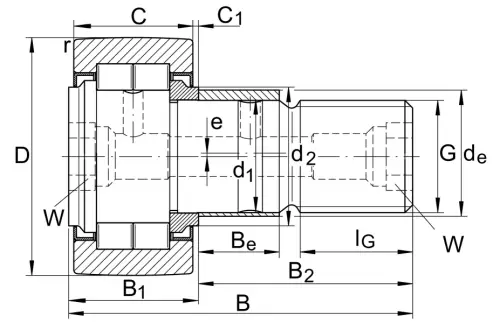

Main Dimensions & Performance Data
D
62 mm
Outside diameter
d1
24 mm
Fit diameter of roller stud / stud
B
80 mm
Width
Cr w
41,000 N
Basic dynamic load rating, radial
C0r w
54,000 N
Basic static load rating, radial
Cur w
7,400 N
Fatigue load limit, radial
nD G
2,600 1/min
Speed on permanent grease lubrication
F0r per
46,000 N
Permissible static load, radial
Fr per
23,300 N
Permissible dynamic load outer ring, radial
≈m
0.782 kg
Weight
