MCGILL GR-20-SS
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

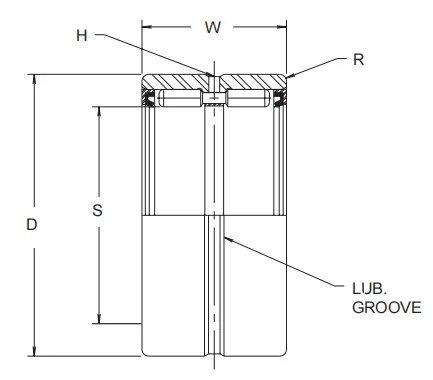

Description
S SHAFT DIA.
1.2500
D*
1.7500
W
1.250
H
3/32
R MAX. FILLET FOR HOUSING
.040
HSG. BORE DIA. ROTATING HOUSING
1.7497
HSG. BORE DIA. STATIONARY HOUSING
1.7507
STATIC LOAD RATING (LBS.)
17000
BASIC DYNAMIC RATING (LBS.)
6500
