MCGILL GR-26-SS
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

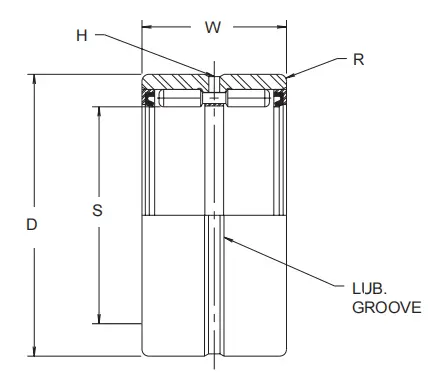

Description
S SHAFT DIA.
1.6250
D*
2.1875
W
1.250
H
3/32
R MAX. FILLET FOR HOUSING
.060
HSG. BORE DIA. ROTATING HOUSING
2.1871
HSG. BORE DIA. STATIONARY HOUSING
2.1882
STATIC LOAD RATING (LBS.)
21700
BASIC DYNAMIC RATING (LBS.)
7500
