MCGILL GR-36-SS
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Description

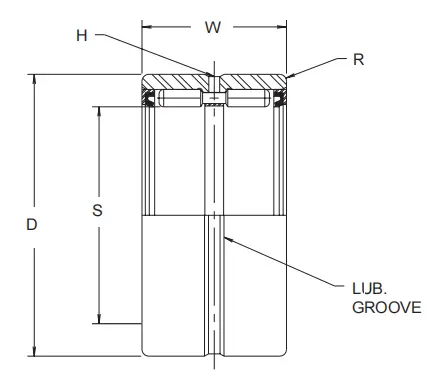

S SHAFT DIA.
2.2500
D*
3.0000
W
1.750
H
1/8
R MAX. FILLET FOR HOUSING
.060
HSG. BORE DIA. ROTATING HOUSING
2.9996
HSG. BORE DIA. STATIONARY HOUSING
3.0007
STATIC LOAD RATING (LBS.)
49100
BASIC DYNAMIC RATING (LBS.)
15250
