Timken A–5934–B
Thrust Tapered Roller Bearings-Type TTHDFLSA
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Bearing Type
Thrust Tapered Roller Bearings - TTHDFLSA

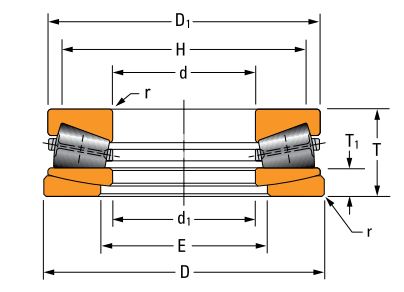

Dimensions
D - Bearing O.D.
203.2 mm
T - Bearing Width
47.625 mm
T1 - Ring Thickness
15.37 mm
D1 - Small Diameter O.D.
203.2 mm
d1 - Large Bore I.D.
101.6 mm
r - Fillet Radius Shaft/Housing (Max)
1.5 mm
H - Shoulder Diameter - Shaft
182.6 mm
E - Shoulder Diameter - Housing
119.1 mm
Basic Load Ratings
Static Load Rating
2300000 N
Dynamic Load Rating
200000 N
