Timken E–2004–C
Thrust Tapered Roller Bearings-Type TTHDFLSA
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Bearing Type
Thrust Tapered Roller Bearings - TTHDFLSA

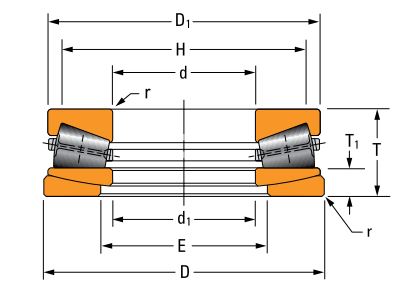

Dimensions
D - Bearing O.D.
482.549 mm
T - Bearing Width
158.75 mm
T1 - Ring Thickness
44.91 mm
D1 - Small Diameter O.D.
479.55 mm
d1 - Large Bore I.D.
231.78 mm
r - Fillet Radius Shaft/Housing (Max)
4.8 mm
H - Shoulder Diameter - Shaft
419.1 mm
E - Shoulder Diameter - Housing
282.6 mm
Basic Load Ratings
Static Load Rating
20000000 N
Dynamic Load Rating
1670000 N
