Timken B–7976–C
Thrust Tapered Roller Bearings-Type TTHDFLSA
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Bearing Type
Thrust Tapered Roller Bearings - TTHDFLSA

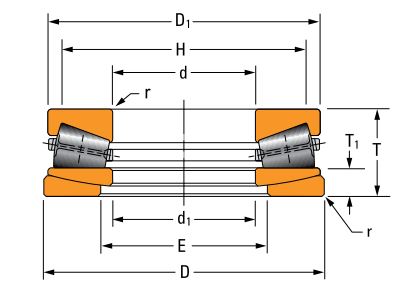

Dimensions
D - Bearing O.D.
406.400 mm
T - Bearing Width
203.2 mm
T1 - Ring Thickness
66.68 mm
D1 - Small Diameter O.D.
404.81 mm
d1 - Large Bore I.D.
187.32 mm
r - Fillet Radius Shaft/Housing (Max)
6.1 mm
H - Shoulder Diameter - Shaft
346.1 mm
E - Shoulder Diameter - Housing
228.6 mm
Basic Load Ratings
Static Load Rating
15000000 N
Dynamic Load Rating
1370000 N
