Timken B–8424–C
Thrust Tapered Roller Bearings-Type TTHDFLSA
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Bearing Type
Thrust Tapered Roller Bearings - TTHDFLSA

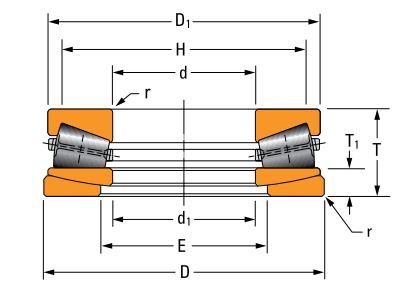

Dimensions
D - Bearing O.D.
869.95 mm
T - Bearing Width
241.3 mm
T1 - Ring Thickness
82.55 mm
D1 - Small Diameter O.D.
887.41 mm
d1 - Large Bore I.D.
438.15 mm
r - Fillet Radius Shaft/Housing (Max)
16.5 mm
H - Shoulder Diameter - Shaft
803.3 mm
E - Shoulder Diameter - Housing
463.6 mm
Basic Load Ratings
Static Load Rating
73500000 N
Dynamic Load Rating
4840000 N
