Timken B–8073–C
Thrust Tapered Roller Bearings-Type TTHDFLSA
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Bearing Type
Thrust Tapered Roller Bearings - TTHDFLSA

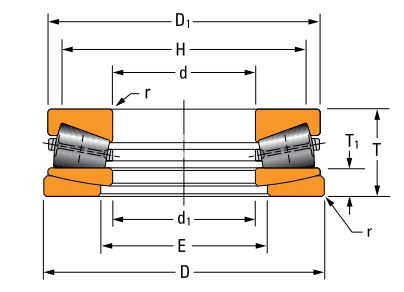

Dimensions
D - Bearing O.D.
990.600 mm
T - Bearing Width
196.85 mm
T1 - Ring Thickness
67.31 mm
D1 - Small Diameter O.D.
989.03 mm
d1 - Large Bore I.D.
511.18 mm
r - Fillet Radius Shaft/Housing (Max)
12.7 mm
H - Shoulder Diameter - Shaft
927.1 mm
E - Shoulder Diameter - Housing
563.6 mm
Basic Load Ratings
Static Load Rating
77800000 N
Dynamic Load Rating
4420000 N
