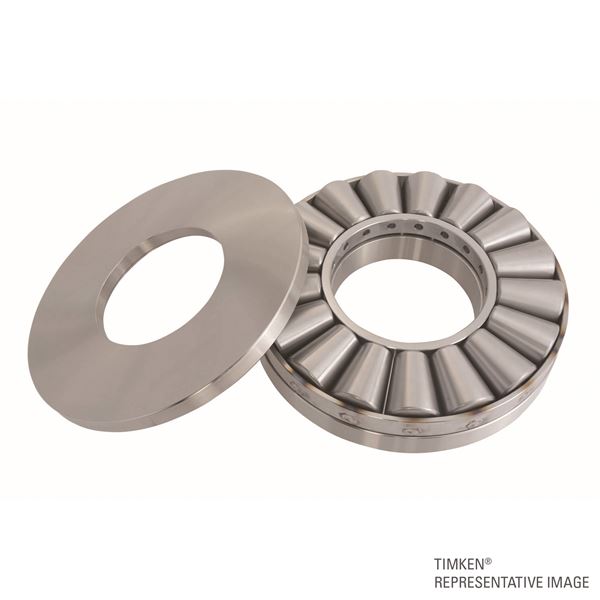

Timken B-8809-C
Thrust Tapered Roller Bearings-Type TTHDFL-V-Flat
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Bearing Type
Thrust Tapered Roller Bearings - TTHDFL-V-Flat

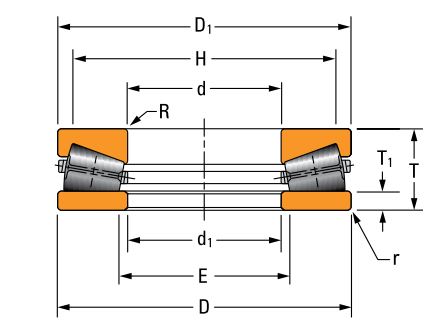

Dimensions
D - Bearing O.D.
405.643 mm
T - Bearing Width
111.125 mm
T1 - Ring Thickness
25.4 mm
D1 - Small Diameter O.D.
396.85 mm
d1 - Large Bore I.D.
203.2 mm
R - Fillet Radius Shaft (Max)
4 mm
r - Fillet Radius Housing (Max)
4 mm
H - Shoulder Diameter - Shaft
360 mm
E - Shoulder Diameter - Housing
228.6 mm
Basic Load Ratings
Static Load Rating
13000000 N
Dynamic Load Rating
1060000 N
