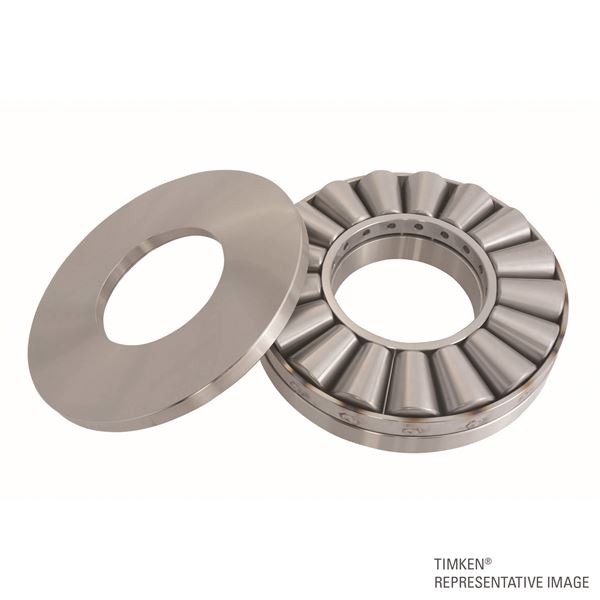

Timken E-2054-G
Thrust Tapered Roller Bearings-Type TTHDFL-V-Flat
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Bearing Type
Thrust Tapered Roller Bearings - TTHDFL-V-Flat
Dimensions
D - Bearing O.D.
863.6 mm
T - Bearing Width
228.6 mm
T1 - Ring Thickness
44.45 mm
D1 - Small Diameter O.D.
862.03 mm
d1 - Large Bore I.D.
441.2 mm
R - Fillet Radius Shaft (Max)
10.2 mm
r - Fillet Radius Housing (Max)
10.2 mm
H - Shoulder Diameter - Shaft
787.4 mm
E - Shoulder Diameter - Housing
489 mm
Basic Load Ratings
Static Load Rating
66800000 N
Dynamic Load Rating
4790000 N
