Timken HJ-13216248

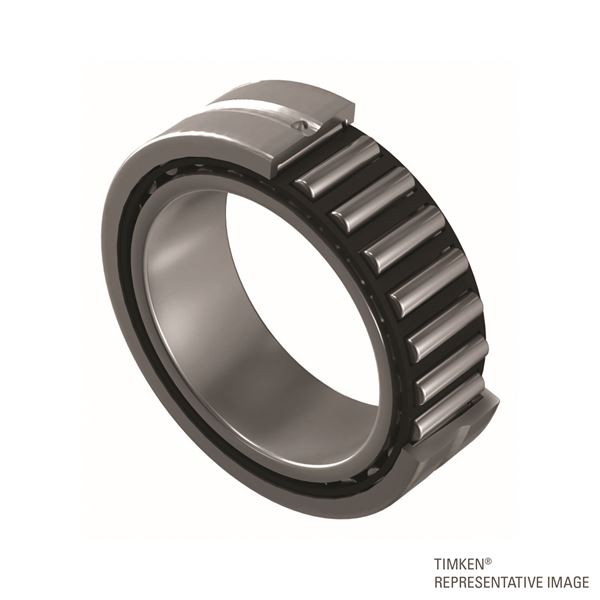

Cylindrical Roller Radial Bearings - HJ Series
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

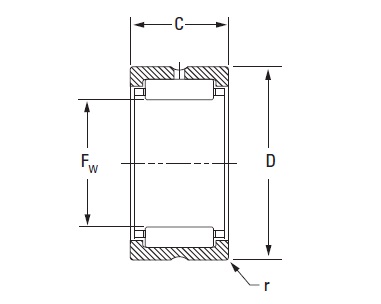

Bearing Dimensions
Shaft Diameter (F
209.55 mm
D - Outer Diameter
257.175 mm
Dimension C/B
76.2 mm
Specifications
Static Load Rating C
1290000 N
Dynamic Load Rating C1
563000 N
Geometry Factor C2
0.1736
Thermal Speed Ratings - Oil
1500 rpm
Thermal Speed Ratings - Grease
1300 rpm

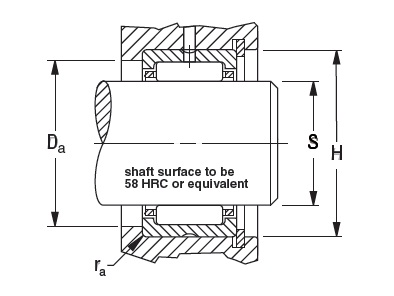

Mounting Data
Chamfer r
3.050 mm
Max. Mounting Dimensions Clearance Fit 1
209.55 mm
Min. Mounting Dimensions Clearance Fit 1
209.520 mm
Max. Mounting Dimensions Clearance Fit 2
257.226 mm
Min. Mounting Dimensions Clearance Fit 2
257.175 mm
Max. Mounting Dimensions Tight Transition Fit S
8.2480 mm
Min. Mounting Dimensions Tight Transition Fit S
209.469 mm
Max. Mounting Dimensions Tight Transition Fit H
257.109 mm
Min. Mounting Dimensions Tight Transition Fit H
257.160 mm
Shoulder Diameter D
241.30 mm
Sub Assembly Part Numbers
Used with Inner Ring Designation
IR-11213248
