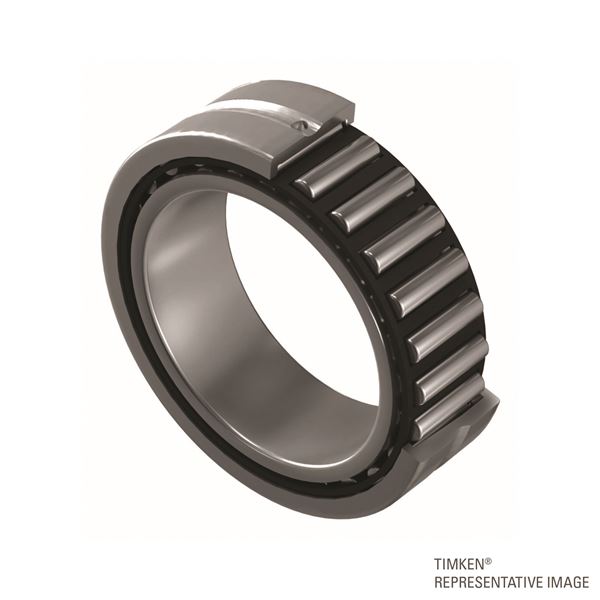

Timken HJ-14017048
Cylindrical Roller Radial Bearings - HJ Series
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

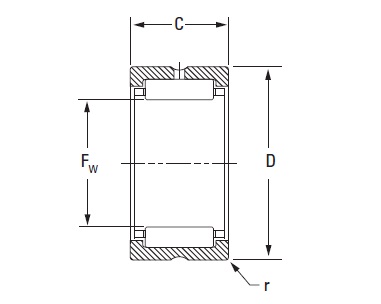

Bearing Dimensions
Shaft Diameter (F
222.25 mm
D - Outer Diameter
269.875 mm
Dimension C/B
76.2 mm
Specifications
Static Load Rating C
1370000 N
Dynamic Load Rating C1
581000 N
Geometry Factor C2
0.1810
Thermal Speed Ratings - Oil
1400 rpm
Thermal Speed Ratings - Grease
1200 rpm

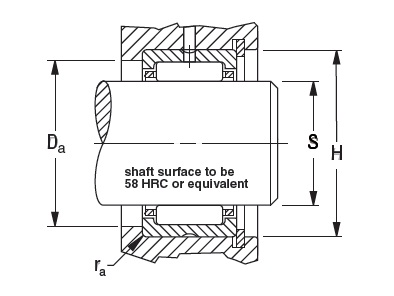

Mounting Data
Chamfer r
4.060 mm
Max. Mounting Dimensions Clearance Fit 1
222.25 mm
Min. Mounting Dimensions Clearance Fit 1
222.220 mm
Max. Mounting Dimensions Clearance Fit 2
269.926 mm
Min. Mounting Dimensions Clearance Fit 2
269.875 mm
Max. Mounting Dimensions Tight Transition Fit S
8.7480 mm
Min. Mounting Dimensions Tight Transition Fit S
222.169 mm
Max. Mounting Dimensions Tight Transition Fit H
269.809 mm
Min. Mounting Dimensions Tight Transition Fit H
269.860 mm
Shoulder Diameter D
254.00 mm
Sub Assembly Part Numbers
Used with Inner Ring Designation
IR-12014048
