Timken HJ-607632
Cylindrical Roller Radial Bearings - HJ Series
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

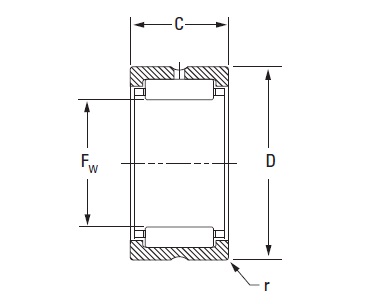

Bearing Dimensions
Shaft Diameter (F
95.25 mm
D - Outer Diameter
120.650 mm
Dimension C/B
50.8 mm
Specifications
Static Load Rating C
398000 N
Dynamic Load Rating C1
193000 N
Geometry Factor C2
0.1011
Thermal Speed Ratings - Oil
3700 rpm
Thermal Speed Ratings - Grease
3300 rpm

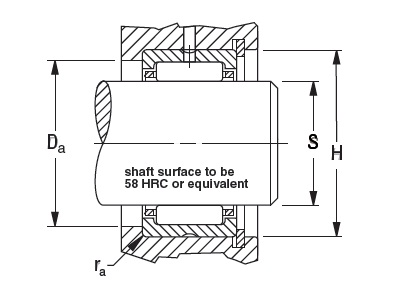

Mounting Data
Chamfer r
2.540 mm
Max. Mounting Dimensions Clearance Fit 1
95.25 mm
Min. Mounting Dimensions Clearance Fit 1
95.227 mm
Max. Mounting Dimensions Clearance Fit 2
120.691 mm
Min. Mounting Dimensions Clearance Fit 2
120.650 mm
Max. Mounting Dimensions Tight Transition Fit S
3.7487 mm
Min. Mounting Dimensions Tight Transition Fit S
95.192 mm
Max. Mounting Dimensions Tight Transition Fit H
120.594 mm
Min. Mounting Dimensions Tight Transition Fit H
120.635 mm
Shoulder Diameter D
111.13 mm
Sub Assembly Part Numbers
Used with Inner Ring Designation
IR-506032
