Timken HJ-648032
Cylindrical Roller Radial Bearings - HJ Series
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

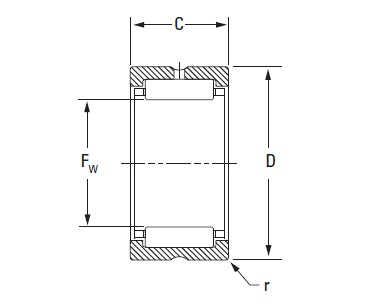

Bearing Dimensions
Shaft Diameter (F
101.60 mm
D - Outer Diameter
127 mm
Dimension C/B
50.8 mm
Specifications
Static Load Rating C
428000 N
Dynamic Load Rating C1
201000 N
Geometry Factor C2
0.106
Thermal Speed Ratings - Oil
3500 rpm
Thermal Speed Ratings - Grease
3100 rpm

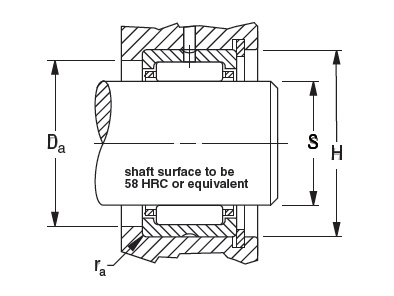

Mounting Data
Chamfer r
2.540 mm
Max. Mounting Dimensions Clearance Fit 1
101.60 mm
Min. Mounting Dimensions Clearance Fit 1
101.577 mm
Max. Mounting Dimensions Clearance Fit 2
127.041 mm
Min. Mounting Dimensions Clearance Fit 2
127.000 mm
Max. Mounting Dimensions Tight Transition Fit S
3.9986 mm
Min. Mounting Dimensions Tight Transition Fit S
101.542 mm
Max. Mounting Dimensions Tight Transition Fit H
126.944 mm
Min. Mounting Dimensions Tight Transition Fit H
126.985 mm
Shoulder Diameter D
117.48 mm
Sub Assembly Part Numbers
Used with Inner Ring Designation
IR-526432
