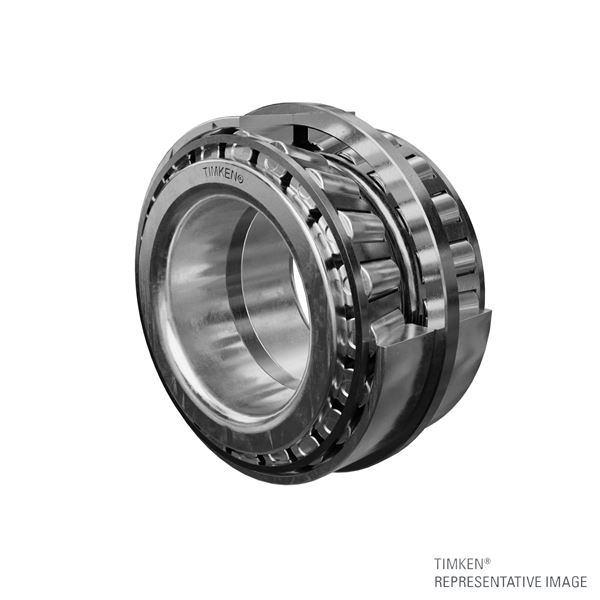

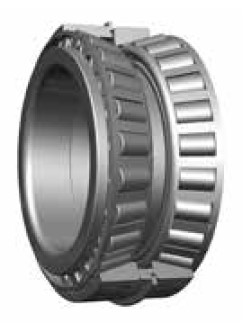

Timken JHM522649 – JHM522610 (HM522649XE – HM522610ES)
Tapered Roller Bearings - SR (Matched Bearing Assembly, SET-RIGHT™)
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
JHM522649 – JHM522610 (HM522649XE – HM522610ES)
Specifications
Cone Part Number
JHM522649
Cup Part Number
JHM522610
Inner Spacer Part Number
HM522649XE
Outer Spacer Part Number
HM522610ES
Snap Ring Part Number
K518334R
Design Unit
Metric
Dimensions
d - Bore
110 mm
D - Cup Outer Diameter
180 mm
T - Width
103 mm
C - Width
84.364 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
3.050 mm
r - Cup Backface "To Clear" Radius2
0.8 mm
db - Cone Backface Backing Diameter
127 mm
Da - Cup Frontface Backing Diameter
172 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (90 million revolutions)3
96300 N
C1 - Dynamic Radial Rating (1 million revolutions)4
647000 N
C5
66900 N
C906
168000 N
Factors
K - Factor7
1.44
e - ISO Factor8
0.41
Y1 - ISO Factor9
1.66
Y2 - ISO Factor10
2.48
