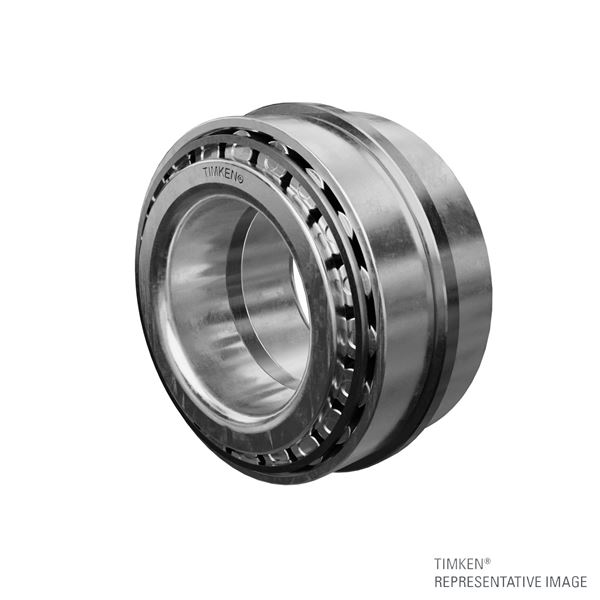

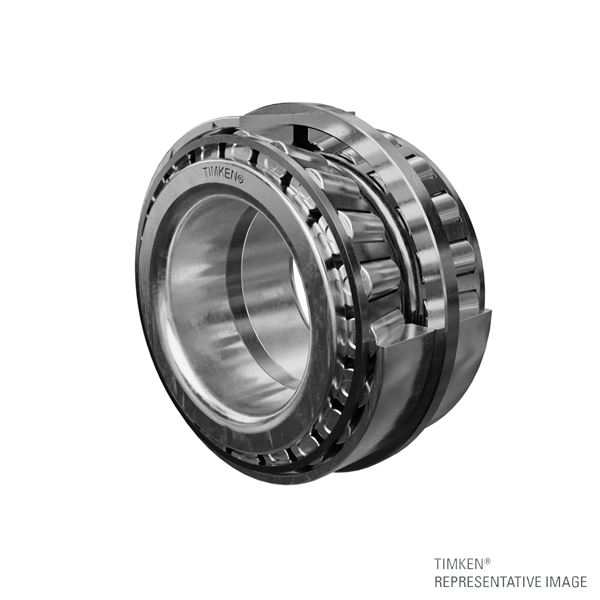

Timken JM207049 – JM207010 (M207049XS – M207010ES)
Tapered Roller Bearings - SR (Matched Bearing Assembly, SET-RIGHT™)
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
JM207049 – JM207010 (M207049XS – M207010ES)
Specifications
Cone Part Number
JM207049
Cup Part Number
JM207010
Inner Spacer Part Number
M207049XS
Outer Spacer Part Number
M207010ES
Snap Ring Part Number
K518779R
Design Unit
Metric
Dimensions
d - Bore
55 mm
D - Cup Outer Diameter
95 mm
T - Width
64 mm
C - Width
52.418 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
1.520 mm
r - Cup Backface "To Clear" Radius2
0.5 mm
db - Cone Backface Backing Diameter
64 mm
Da - Cup Frontface Backing Diameter
91.90 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (90 million revolutions)3
33800 N
C1 - Dynamic Radial Rating (1 million revolutions)4
227000 N
C5
19400 N
C906
58900 N
Factors
K - Factor7
1.74
e - ISO Factor8
0.33
Y1 - ISO Factor9
2.02
Y2 - ISO Factor10
3
