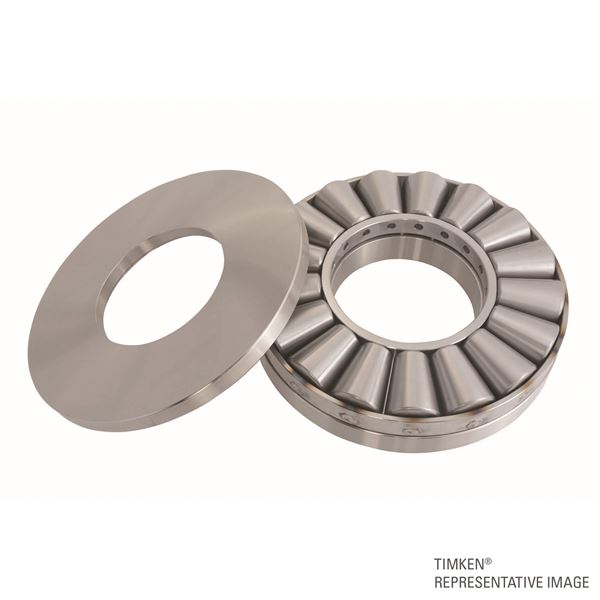

Timken T11002V-902A1
Thrust Tapered Roller Bearings-Type TTHDFL-V-Flat
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Bearing Type
Thrust Tapered Roller Bearings - TTHDFL-V-Flat

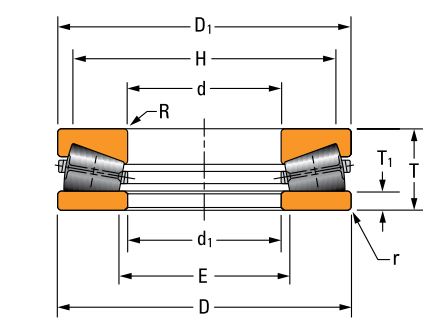

Dimensions
D - Bearing O.D.
603.25 mm
T - Bearing Width
136.525 mm
T1 - Ring Thickness
38.1 mm
D1 - Small Diameter O.D.
603.25 mm
d1 - Large Bore I.D.
279.4 mm
R - Fillet Radius Shaft (Max)
11.200 mm
r - Fillet Radius Housing (Max)
1.5 mm
H - Shoulder Diameter - Shaft
543.5 mm
E - Shoulder Diameter - Housing
313.8 mm
Basic Load Ratings
Static Load Rating
32200000 N
Dynamic Load Rating
2570000 N
