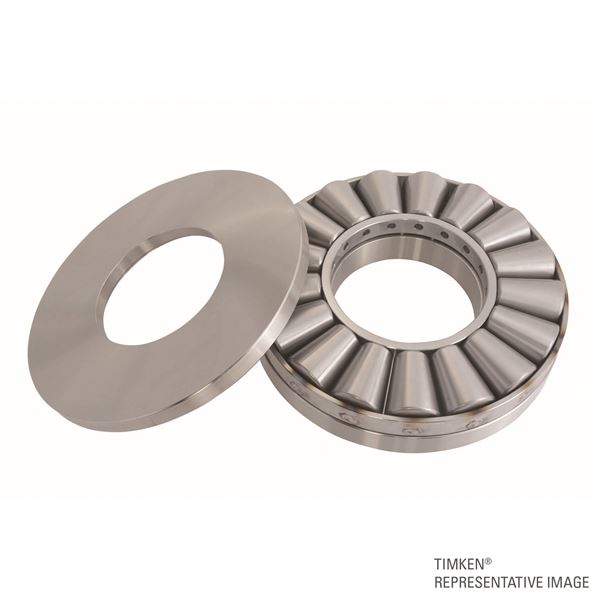

Timken T15501-90010
Thrust Tapered Roller Bearings-Type TTHDFL-V-Flat
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Bearing Type
Thrust Tapered Roller Bearings - TTHDFL-V-Flat

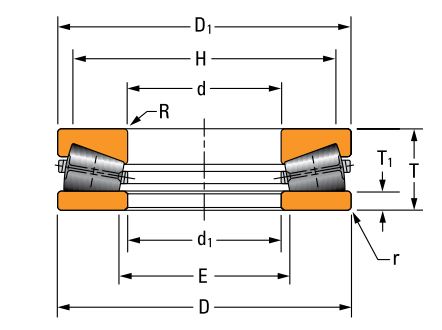

Dimensions
D - Bearing O.D.
495.300 mm
T - Bearing Width
44.45 mm
T1 - Ring Thickness
11.15 mm
D1 - Small Diameter O.D.
495.3 mm
d1 - Large Bore I.D.
393.7 mm
R - Fillet Radius Shaft (Max)
3.300 mm
r - Fillet Radius Housing (Max)
3.3 mm
H - Shoulder Diameter - Shaft
471.6 mm
E - Shoulder Diameter - Housing
408.3 mm
Basic Load Ratings
Static Load Rating
6900000 N
Dynamic Load Rating
370000 N
