Timken T18500-902A1
Thrust Tapered Roller Bearings-Type TTHDFL-V-Flat
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Bearing Type
Thrust Tapered Roller Bearings - TTHDFL-V-Flat

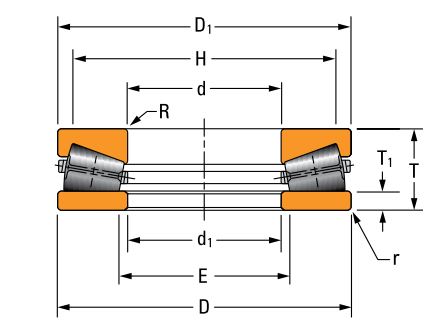

Dimensions
D - Bearing O.D.
917.575 mm
T - Bearing Width
222.25 mm
T1 - Ring Thickness
44.45 mm
D1 - Small Diameter O.D.
917.58 mm
d1 - Large Bore I.D.
469.9 mm
R - Fillet Radius Shaft (Max)
12.700 mm
r - Fillet Radius Housing (Max)
12.7 mm
H - Shoulder Diameter - Shaft
825.7 mm
E - Shoulder Diameter - Housing
519.6 mm
Basic Load Ratings
Static Load Rating
68200000 N
Dynamic Load Rating
4830000 N
