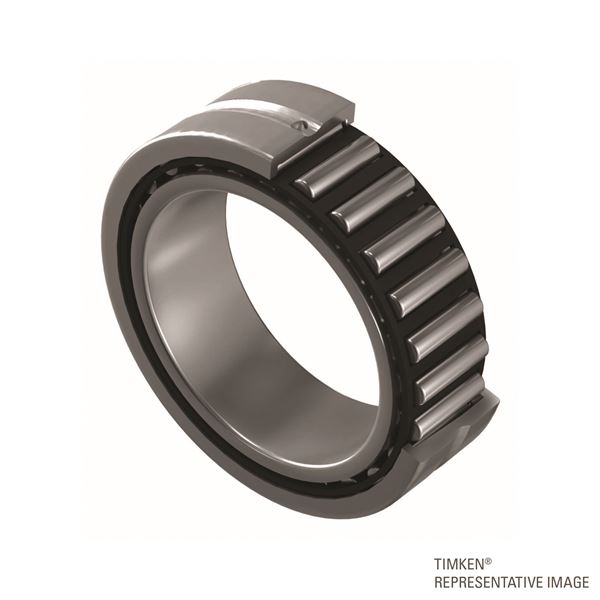

Timken HJ-10412840
Cylindrical Roller Radial Bearings - HJ Series
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

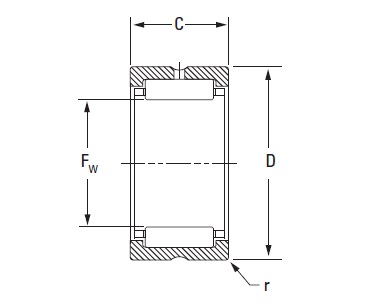

Bearing Dimensions
Shaft Diameter (F
165.10 mm
D - Outer Diameter
203.2 mm
Dimension C/B
63.5 mm
Specifications
Static Load Rating C
832000 N
Dynamic Load Rating C1
376000 N
Geometry Factor C2
0.1459
Thermal Speed Ratings - Oil
2100 rpm
Thermal Speed Ratings - Grease
1800 rpm

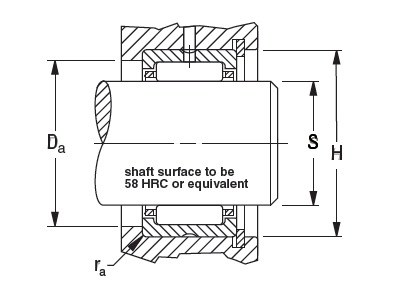

Mounting Data
Chamfer r
3.050 mm
Max. Mounting Dimensions Clearance Fit 1
165.10 mm
Min. Mounting Dimensions Clearance Fit 1
165.075 mm
Max. Mounting Dimensions Clearance Fit 2
203.246 mm
Min. Mounting Dimensions Clearance Fit 2
203.200 mm
Max. Mounting Dimensions Tight Transition Fit S
6.4984 mm
Min. Mounting Dimensions Tight Transition Fit S
165.034 mm
Max. Mounting Dimensions Tight Transition Fit H
203.139 mm
Min. Mounting Dimensions Tight Transition Fit H
203.185 mm
Shoulder Diameter D
188.91 mm
Sub Assembly Part Numbers
Used with Inner Ring Designation
IR-8810440
