Timken HJ-8010440
Cylindrical Roller Radial Bearings - HJ Series
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

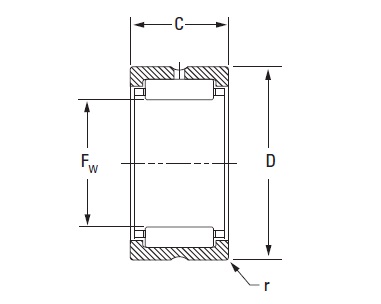

Bearing Dimensions
Shaft Diameter (F
127.00 mm
D - Outer Diameter
165.1 mm
Dimension C/B
63.5 mm
Specifications
Static Load Rating C
684000 N
Dynamic Load Rating C1
345000 N
Geometry Factor C2
0.1213
Thermal Speed Ratings - Oil
2800 rpm
Thermal Speed Ratings - Grease
2500 rpm
Mounting Data
Chamfer r
2.540 mm
Max. Mounting Dimensions Clearance Fit 1
127.00 mm
Min. Mounting Dimensions Clearance Fit 1
126.975 mm
Max. Mounting Dimensions Clearance Fit 2
165.141 mm
Min. Mounting Dimensions Clearance Fit 2
165.100 mm
Max. Mounting Dimensions Tight Transition Fit S
4.9984 mm
Min. Mounting Dimensions Tight Transition Fit S
126.934 mm
Max. Mounting Dimensions Tight Transition Fit H
165.044 mm
Min. Mounting Dimensions Tight Transition Fit H
165.085 mm
Shoulder Diameter D
150.81 mm
Sub Assembly Part Numbers
Used with Inner Ring Designation
IR-648040
