IKO CF101WBUUR/SG
Maintenance Free Thrust Disk Cam Follower, Caged, High Carbon Steel, Crowned Outer Ring, Sealed, Hex Head,
IKO CF101WBUUR/SG Cam Follower Overview
The CF101WBUUR/SG is an IKO cam follower in the Cam Followers series. The supplied product information identifies it as a maintenance free thrust disk cam follower with a caged structure, crowned outer ring, seal, hex head, and high carbon steel construction.
What type of bearing is the CF101WBUUR/SG?
This model is classified as a Cam Follower. Its listed internal structure is Cage Type, and its bearing material is listed as high carbon steel.

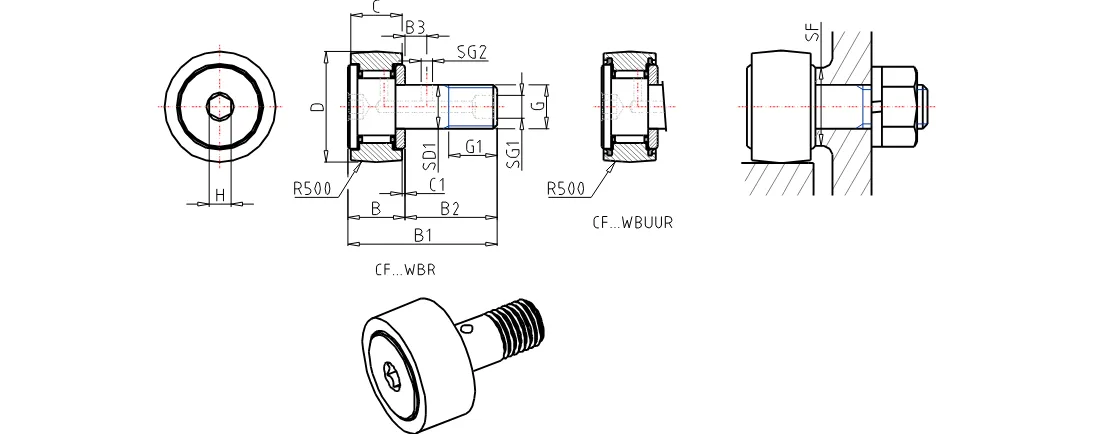

CF101WBUUR/SG Dimensions and Mechanical Data
The supplied dimensional data includes a 10 mm stud diameter, 26 mm outer diameter, and 12 mm width. Additional listed values include an M10x1.25 thread, 13.2 mm maximum width, 36.2 mm maximum total length, 23.0 mm length, 16.0 mm minimum installation-related dimension, and 60.0 g mass.
What load and torque values are provided?
- Maximum tightening torque: 13.80 Nm
- Basic dynamic load rating: 5430 N
- Basic static load rating: 6890 N
- Maximum static allowable load: 6890 N
Design Features Listed for the IKO Cam Follower
The product description lists a sealed configuration, crowned outer ring, hex head, caged design, and thrust disk arrangement. These features are presented from the supplied product data and should be checked against the selected order configuration before installation.
Which order number and category information apply?
The supplied right-hand data lists the order number as CF10-1WBUUR. The category path is Brand > IKO > Cam Followers, and the model is identified as CF101WBUUR/SG.
