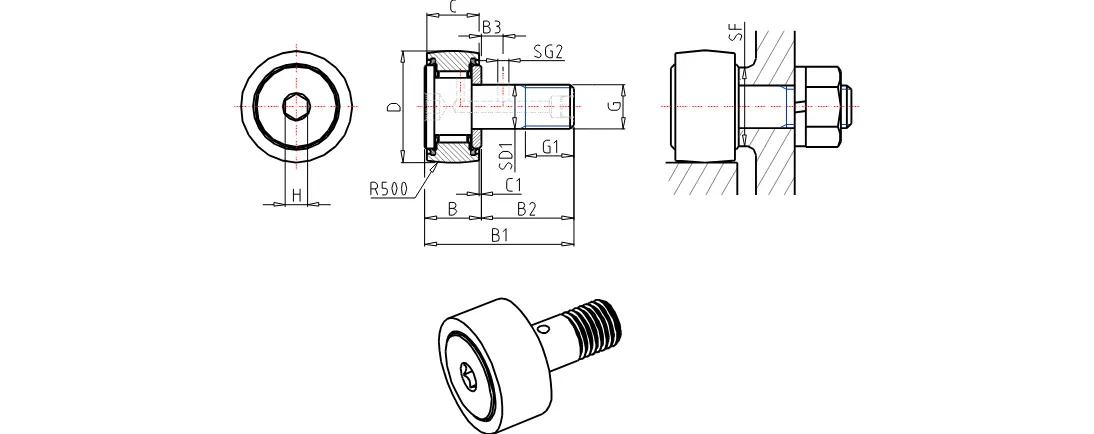

IKO CF20WBUUR/SG
Maintenance Free Thrust Disk Cam Follower, Caged, High Carbon Steel, Crowned Outer Ring, Sealed, Hex Head,
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
CF20WBUUR/SG
Stud Diameter
20
mm
Outer Diameter
52
mm
Width
24
mm
Stud Diameter
20
mm
Thread
M20x1.5
Lenght
21.0
mm
Maximum width
25.6
mm
Max. Total lenght
66.1
mm
Lenght
40.5
mm
Dimension
9
Dimension
0.8
mm
Diameter
4
Dimension
8
mm
Min.Dimension related to the installation
34.0
mm
Max. Tightening torgue
119.0
Nm
Basic dynamic load rating
20700
N
Basic static load rating
34600
N
Max. Static allowable load
34600
N
Mass
460.0
g
