IKO CF201WBUUR/SG
Maintenance Free Thrust Disk Cam Follower, Caged, High Carbon Steel, Crowned Outer Ring, Sealed, Hex Head,
IKO CF201WBUUR/SG Cam Follower Overview
The CF201WBUUR/SG is an IKO cam follower in the Cam Followers series. The supplied product data identifies it as a maintenance-free thrust disk cam follower with a caged internal structure, high carbon steel bearing material, crowned outer ring, sealing, and a hex head.
What type of bearing is the CF201WBUUR/SG?
The listed bearing type is Cam Followers, and its internal structure is specified as Cage Type. The category path is Brand > IKO > Cam Followers.

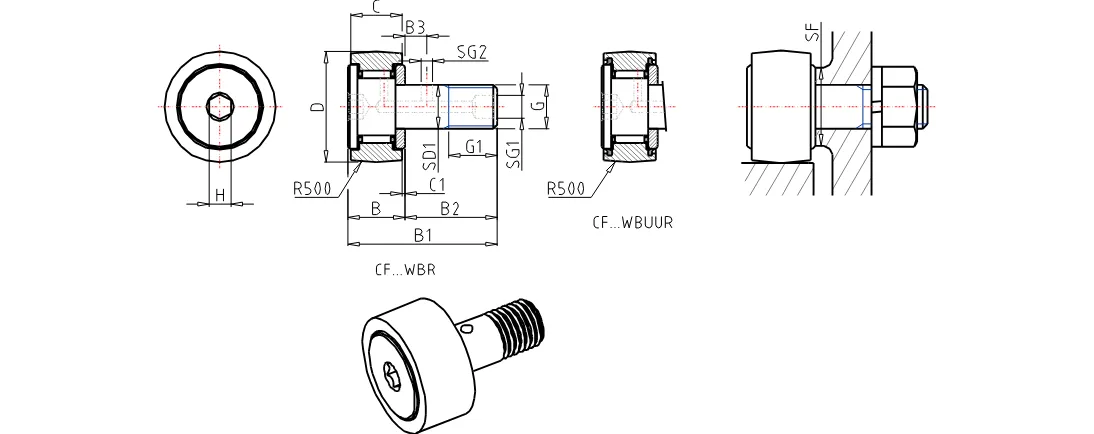

CF201WBUUR/SG Dimensions and Stud Details
The order number is listed as CF20-1WBUUR. Supplied dimensional data includes a 20 mm stud diameter, M20x1.5 thread, 47 mm outer diameter, and 24 mm width.
- Stud diameter: 20 mm
- Outer diameter: 47 mm
- Width: 24 mm
- Thread: M20x1.5
- Thread length: 21.0 mm
- Maximum width: 25.6 mm
- Maximum total length: 66.1 mm
- Length: 40.5 mm
- Mass: 385.0 g
What installation-related measurements are provided?
The data lists a 9 mm dimension, 0.8 mm dimension, 6 mm diameter, 4 mm diameter, 8.0 mm minimum dimension, and 34.0 mm dimension related to installation. It also lists a maximum tightening torque of 119.00 Nm.
Load Ratings and Construction Features
The IKO CF201WBUUR/SG uses high carbon steel bearing material and includes a cage-type structure. The product description also identifies a crowned outer ring, sealing, hex head, and maintenance-free thrust disk design.
- Basic dynamic load rating: 20700 N
- Basic static load rating: 34600 N
- Maximum static allowable load: 34600 N
What material and structural features are specified?
The supplied data specifies high carbon steel as the bearing material and Cage Type as the internal structure. Additional stated features include a crowned outer ring, sealed design, hex head, and maintenance-free thrust disk cam follower configuration.
