IKO CF5WBUUR/SG

IKO CF5WBUUR/SG Cam Follower Overview

What is the CF5WBUUR/SG?

The CF5WBUUR/SG is an IKO cam follower in the Cam Followers product series. The supplied product data identifies it as a maintenance-free thrust disk cam follower with a cage-type internal structure, high carbon steel construction, a crowned outer ring, sealing, and a hex head.

• Brand: IKO
• Model: CF5WBUUR/SG
• Bearing type: Cam Followers
• Material: High Carbon Steel
• Internal structure: Cage Type

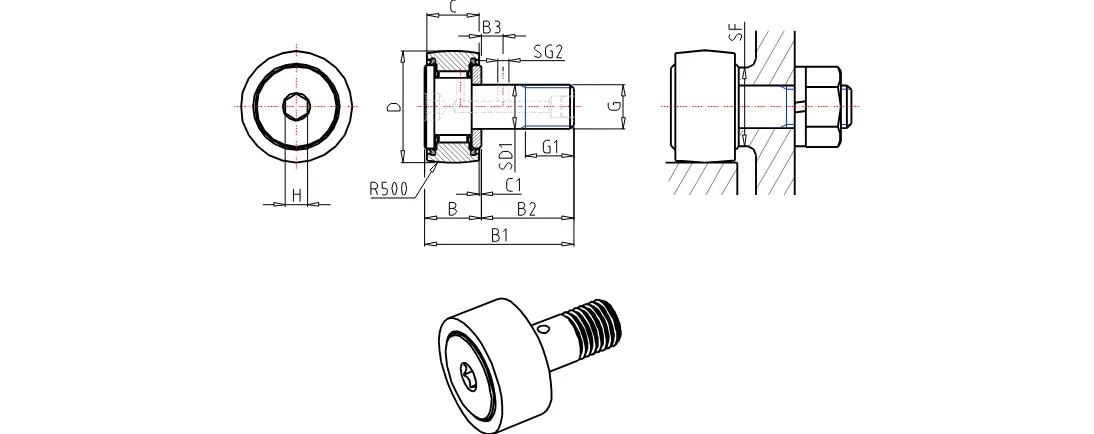

CF5WBUUR/SG Dimensions and Stud Details

What dimensions are provided for selection?

The listed dimensions can be used to compare the cam follower with the required installation space. The data records a 5 mm stud diameter, M5x0.8 thread, 13 mm outer diameter, and 9 mm width.

1. Stud diameter: 5 mm
2. Outer diameter: 13 mm
3. Width: 9 mm
4. Thread: M5x0.8
5. Thread length: 7.5 mm
6. Maximum width: 10.0 mm
7. Maximum total length: 23.0 mm
8. Length: 13.0 mm
9. Dimension: 0.5 mm
10. Diameter dimension: 3 mm
11. Minimum installation-related dimension: 9.3 mm

Load, Torque, and Mass Specifications

What performance values are stated in the product data?

The supplied specifications include load ratings, a maximum tightening torque, and mass for the CF5WBUUR/SG. These values are presented as product data and should be checked against the selected assembly requirements.

• Maximum tightening torque: 1.6 Nm
• Basic dynamic load rating: 2520 N
• Basic static load rating: 2140 N
• Maximum static allowable load: 1260 N
• Mass: 10.3 g
