IKO CF12WBUUR/SG
Maintenance Free Thrust Disk Cam Follower, Caged, High Carbon Steel, Crowned Outer Ring, Sealed, Hex Head,
IKO CF12WBUUR/SG Cam Follower Overview
The CF12WBUUR/SG is an IKO cam follower in the Cam Followers series. The supplied data identifies it as a maintenance-free thrust disk cam follower with a caged structure, crowned outer ring, seal, hex head, and high carbon steel construction.
What are the basic identifying details?
- Model: CF12WBUUR/SG
- Brand: IKO
- Series: Cam Followers
- Bearing type: Cam Followers
- Internal structure: Cage Type
- Material: High Carbon Steel

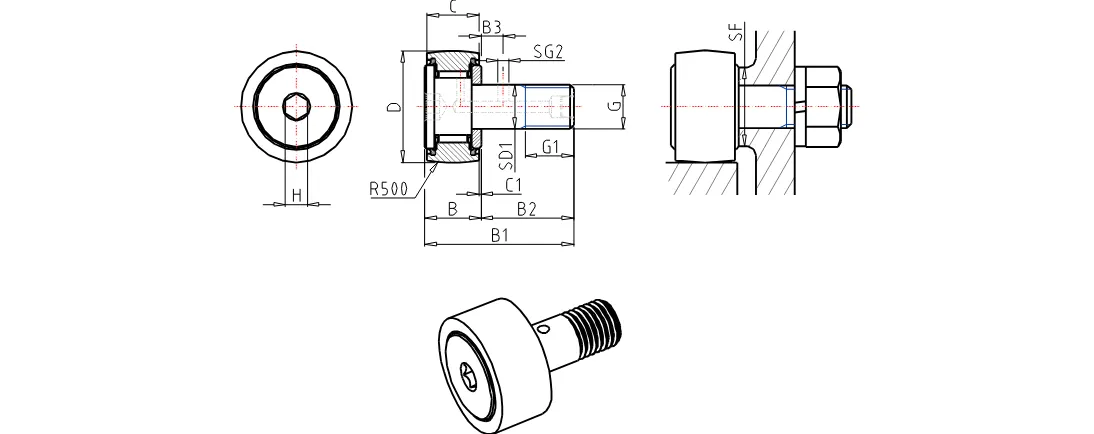

CF12WBUUR/SG Dimensions and Installation Data
The cam follower has a 12 mm stud diameter, 30 mm outer diameter, and 14 mm width. The thread is specified as M12x1.5, with additional length and installation dimensions listed in the product data.
What dimensions and torque value are provided?
- Stud diameter: 12 mm
- Outer diameter: 30 mm
- Width: 14 mm
- Thread: M12x1.5
- Length: 13.0 mm and 25.0 mm are listed
- Maximum width: 15.2 mm
- Maximum total length: 40.2 mm
- Minimum installation-related dimension: 21.0 mm
- Maximum tightening torque: 21.9 Nm
Load Ratings and Physical Specification
The supplied product data includes basic dynamic and static load ratings, maximum static allowable load, and mass. The design features noted are a crowned outer ring, seal, hex head, thrust disk, and caged internal structure.
What load and mass information is listed for this cam follower?
- Basic dynamic load rating: 7910 N
- Basic static load rating: 9790 N
- Maximum static allowable load: 9790 N
- Mass: 95.0 g
Use the listed dimensions and load values when checking suitability for a specific assembly.
