IKO CF16WBUUR/SG

Cam Followers

Maintenance Free Thrust Disk Cam Follower, Caged, High Carbon Steel, Crowned Outer Ring, Sealed, Hex Head,

(BRAND)：IKO

(Availability)：In Stock

(EMAIL)：info@noksbearings.com

Detailed data of

CF16WBUUR/SG

Cam Followers

Order Number CF16WBUUR/SG

Stud Diameter 16 mm

Outer Diameter 35 mm

Width 18 mm

Stud Diameter 16 mm

Thread M16x1.5

Lenght 17.0 mm

Maximum width 19.6 mm

Max. Total lenght 52.1 mm

Lenght 32.5 mm

Dimension 8

Dimension 0.8 mm

Diameter 3

Dimension 6 mm

Min.Dimension related to the installation 26.0 mm

Max. Tightening torgue 58.5 Nm

Basic dynamic load rating 12000 N

Basic static load rating 18300 N

Max. Static allowable load 18300 N

Mass 170.0 g

IKO CF16WBUUR/SG Cam Follower Overview

What is the CF16WBUUR/SG?

The CF16WBUUR/SG is an IKO cam follower in the Cam Followers series. The supplied product data identifies it as a maintenance-free thrust disk cam follower with a cage-type internal structure, high carbon steel construction, a crowned outer ring, sealing, and a hex head.

Brand: IKO
Series: Cam Followers
Bearing type: Cam Followers
Material: High carbon steel
Internal structure: Cage type

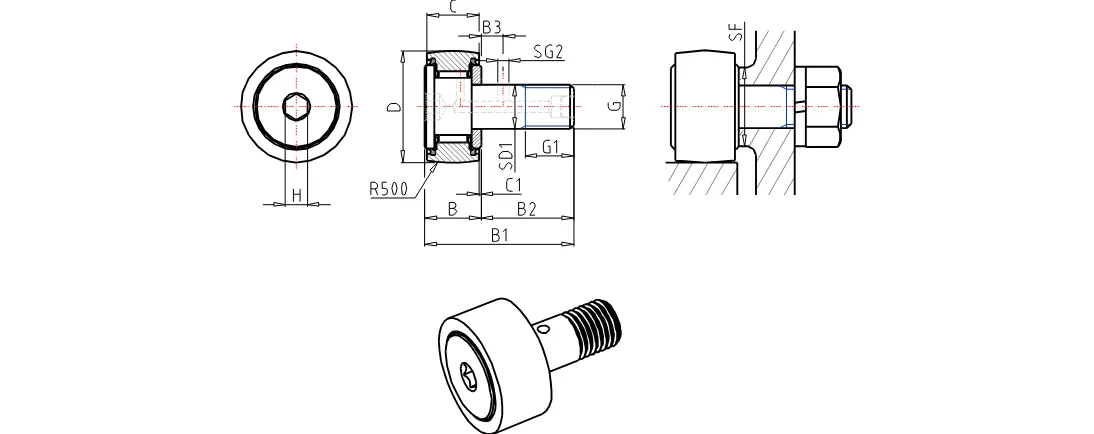

CF16WBUUR/SG Dimensions and Stud Details

What dimensions are provided for this cam follower?

The listed measurements for the CF16WBUUR/SG include the main bearing envelope and stud-related dimensions. Thread size is specified as M16x1.5.

Stud diameter: 16 mm
Outer diameter: 35 mm
Width: 18 mm
Thread: M16x1.5
Length: 17.0 mm
Maximum width: 19.6 mm
Maximum total length: 52.1 mm
Length: 32.5 mm
Installation-related minimum dimension: 26.0 mm
Maximum tightening torque: 58.5 Nm

CF16WBUUR/SG Load and Mass Specifications

What load ratings and mass are stated in the product data?

The supplied data lists basic dynamic and static load ratings, maximum static allowable load, and mass for the IKO CF16WBUUR/SG. Additional listed dimension entries include 8, 0.8 mm, 3, and 6 mm, without further descriptive labels in the source data.
