IKO CF8WBUUR/SG
Maintenance Free Thrust Disk Cam Follower, Caged, High Carbon Steel, Crowned Outer Ring, Sealed, Hex Head,
CF8WBUUR/SG IKO Cam Follower Overview
The CF8WBUUR/SG is an IKO cam follower in the Cam Followers series. The supplied product information identifies it as a maintenance-free thrust disk cam follower with a cage-type internal structure, high carbon steel construction, a crowned outer ring, sealed design, and hex head.
What bearing type and material are listed for the CF8WBUUR/SG?
The listed bearing type is Cam Followers, and the listed bearing material is High Carbon Steel. The internal structure is specified as Cage Type.
CF8WBUUR/SG Dimensions and Thread Data
The CF8WBUUR/SG has an 8 mm stud diameter and a 19 mm outer diameter. Additional supplied dimensions include an 11 mm width, M8x1.25 thread, 10.0 mm thread-related length entry, 20.0 mm length entry, 12.2 mm maximum width, and 32.2 mm maximum total length.
- Stud diameter: 8 mm
- Outer diameter: 19 mm
- Width: 11 mm
- Thread: M8x1.25
- Maximum width: 12.2 mm
- Maximum total length: 32.2 mm
- Mass: 28.5 g
What installation-related measurements are provided?

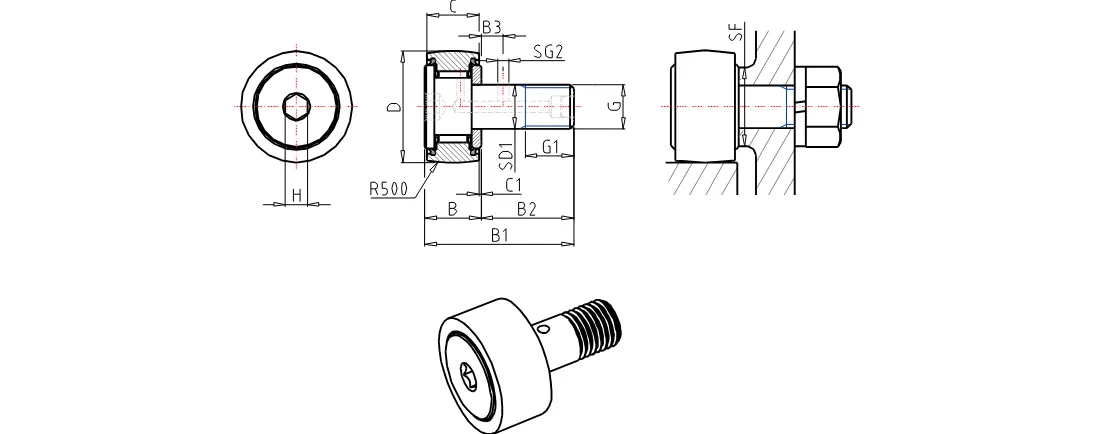

The data lists a minimum installation-related dimension of 13.0 mm, a 0.6 mm dimension entry, and a 4 mm diameter-related dimension entry. Because the source labels are abbreviated, these values should be checked against the official IKO dimension drawing before installation.
CF8WBUUR/SG Load and Torque Values
The supplied performance values for the CF8WBUUR/SG include a basic dynamic load rating of 4250 N, a basic static load rating of 4740 N, and a maximum static allowable load of 4620 N. The listed maximum tightening torque is 6.5 Nm.
- Basic dynamic load rating: 4250 N
- Basic static load rating: 4740 N
- Maximum static allowable load: 4620 N
- Maximum tightening torque: 6.5 Nm
What design features are identified for this cam follower?
The product data identifies a crowned outer ring, sealed construction, hex head, thrust disk arrangement, and cage-type internal structure. These details describe the listed configuration of the CF8WBUUR/SG.
