IKO CF6WBUUR/SG
Maintenance Free Thrust Disk Cam Follower, Caged, High Carbon Steel, Crowned Outer Ring, Sealed, Hex Head,
(BRAND)：IKO
(Availability)：In Stock
Order Number
CF6WBUUR/SG
Stud Diameter
6
mm
Outer Diameter
16
mm
Width
11
mm
Stud Diameter
6
mm
Thread
M6x1
Lenght
8.0
mm
Maximum width
12.2
mm
Max. Total lenght
28.2
mm
Lenght
16.0
mm
Dimension
-
Dimension
0.6
mm
Diameter
-
Dimension
3
mm
Min.Dimension related to the installation
11.0
mm
Max. Tightening torgue
2.7
Nm
Basic dynamic load rating
3660
N
Basic static load rating
3650
N
Max. Static allowable load
1950
N
Mass
18.5
g
IKO CF6WBUUR/SG Cam Follower Design
What type of bearing is the CF6WBUUR/SG?
The CF6WBUUR/SG is an IKO cam follower in the Cam Followers series. The supplied product description identifies it as a maintenance-free thrust disk cam follower with a caged structure, crowned outer ring, seal, and hex head.
- Brand: IKO
- Series: Cam Followers
- Internal structure: Cage type
- Outer ring: Crowned
- Configuration: Sealed, hex head

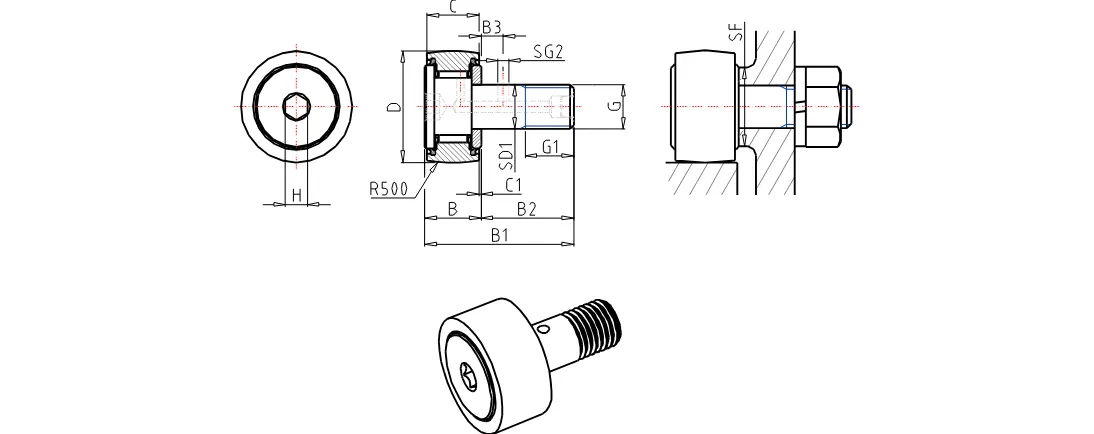

CF6WBUUR/SG Dimensions and Fastening Data
What dimensions and thread information are listed for this cam follower?
The product data lists a 6 mm stud diameter, M6x1 thread, 16 mm outer diameter, and 11 mm width. Additional supplied dimensional values are shown below.
- Thread length: 8.0 mm
- Length: 16.0 mm
- Maximum width: 12.2 mm
- Maximum total length: 28.2 mm
- Minimum installation-related dimension: 11.0 mm
- Maximum tightening torque: 2.7 Nm
Load Ratings, Material, and Mass
What load and material specifications are provided?
The CF6WBUUR/SG is specified with high carbon steel bearing material and a mass of 18.5 g. The supplied load ratings are a basic dynamic load rating of 3660 N, a basic static load rating of 3650 N, and a maximum static allowable load of 1950 N.
Use these stated values with the corresponding engineering and installation requirements.
- Material: High carbon steel
- Basic dynamic load rating: 3660 N
- Basic static load rating: 3650 N
- Maximum static allowable load: 1950 N
- Mass: 18.5 g
