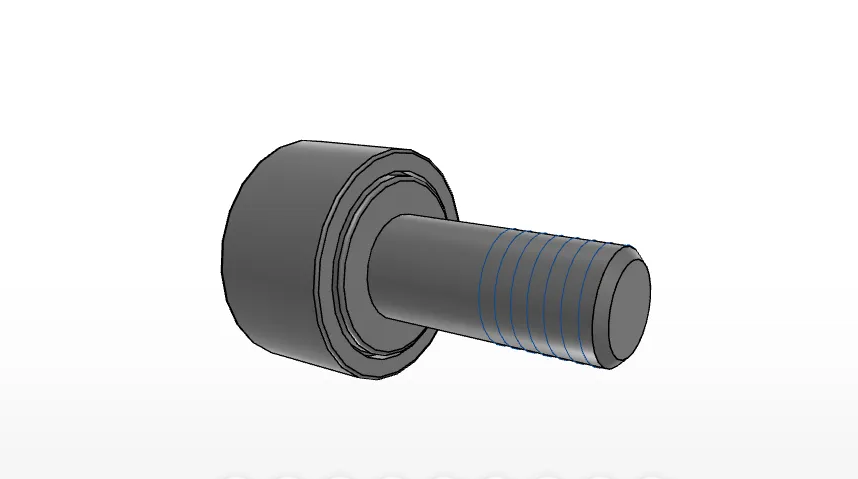

IKO CF10FB

Standard Metric Cam Follower, Caged, Stainless Steel, Cylindrical Outer Ring, Shielded, Hex Head,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

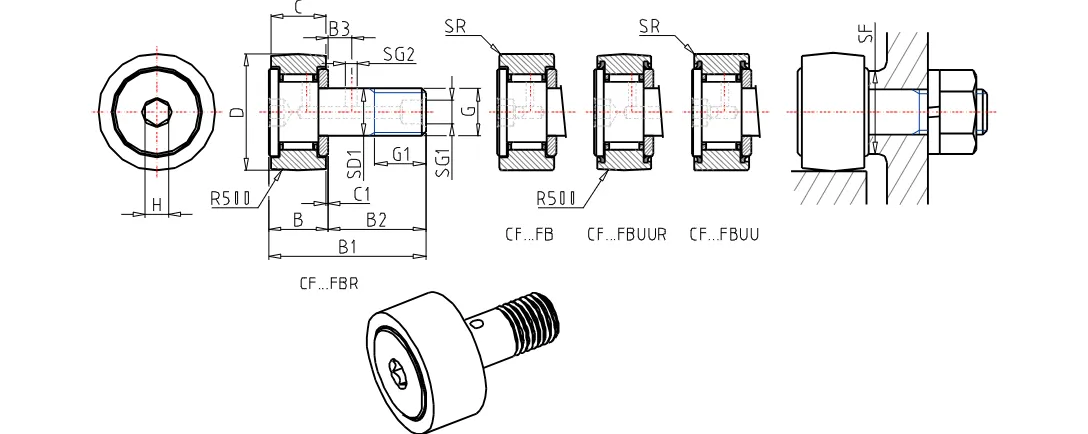

Detailed data of

CF10FB

Order Number CF10FB
Stud Diameter 10 mm
Outer Diameter 22 mm
Width 12 mm
Stud Diameter 10 mm
Thread M10x1.25 Length
12.0 mm
Maximum width 13.2 mm
Max.Total length 36.2 mm
Length 23.0 mm
Dimension - mm
Dimension 0.6 mm
Diameter - mm
Diameter - mm
Dimension 5.0 mm
rs min. 0.3 mm
Min.Dimension related to the installation 16.0 mm
Maximum tightening torque 13.80 Nm
Basic dynamic load rating 4340 N
Basic static load rating 5510 N
Max.Static allowable load 5510 N
Mass 45.0 g
