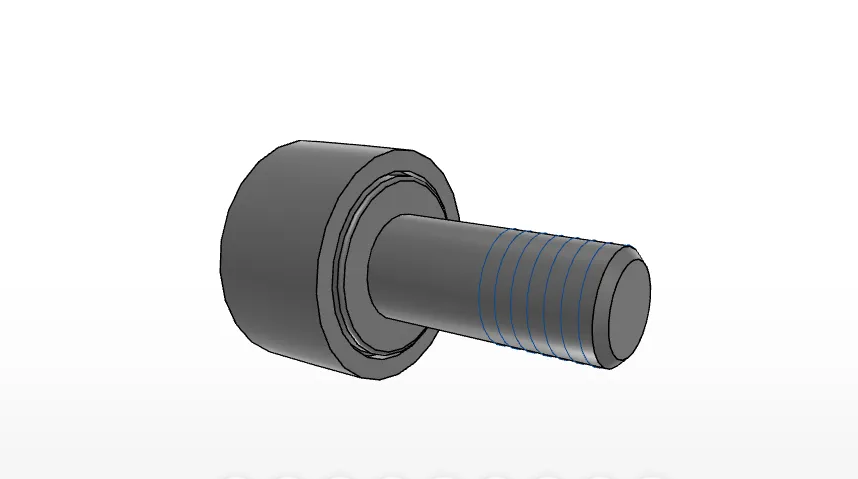

IKO CF10FBR
Standard Metric Cam Follower, Caged, Stainless Steel, Crowned Outer Ring, Shielded, Hex Head,
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
CF10FBR
Stud Diameter
10
mm
Outer Diameter
22
mm
Width
12
mm
Stud Diameter
10
mm
Thread
M10x1.25
Length
12.0
mm
Maximum width
13.2
mm
Max.Total length
36.2
mm
Length
23.0
mm
Dimension
-
mm
Dimension
0.6
mm
Diameter
-
mm
Diameter
-
mm
Dimension
5.0
mm
rs min.
-
mm
Min.Dimension related to the installation
16.0
mm
Maximum tightening torque
13.80
Nm
Basic dynamic load rating
4340
N
Basic static load rating
5510
N
Max.Static allowable load
5510
N
Mass
45.0
g
