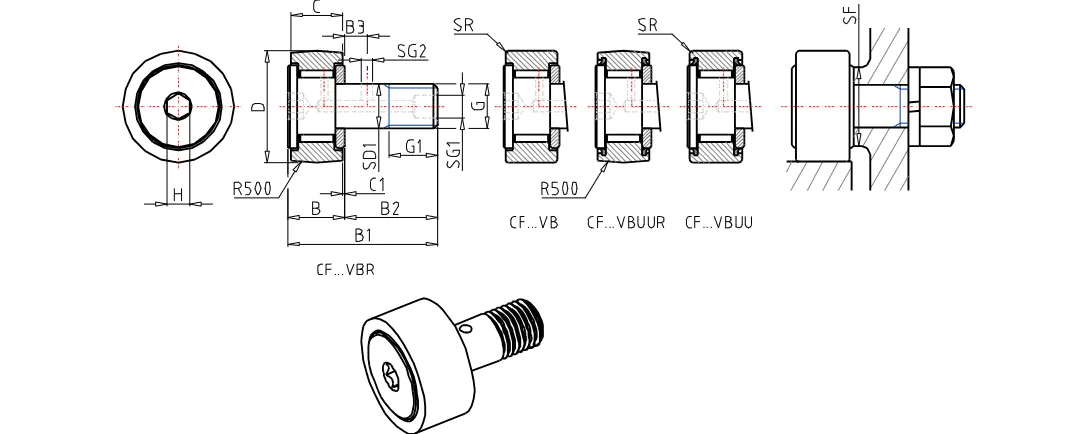

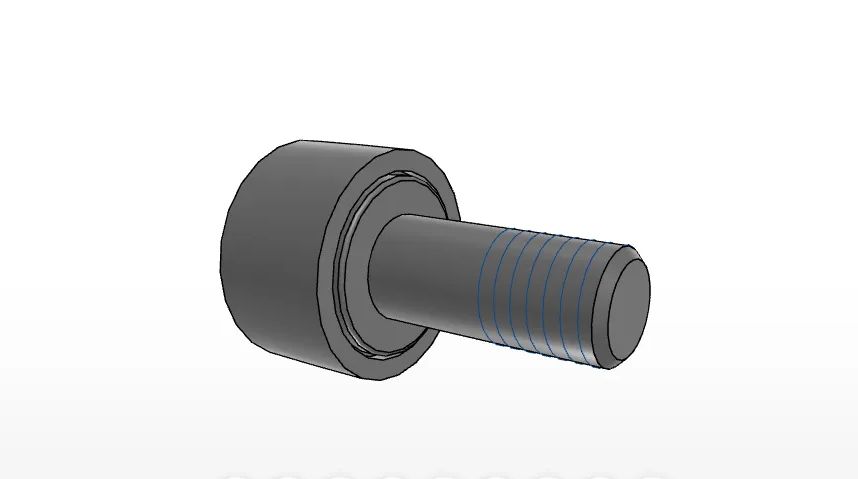

IKO CF10VBR
Standard Metric Cam Follower, Full Complement, High Carbon Steel, Crowned Outer Ring, Shielded, Hex Head,
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
CF10VBR
Stud Diameter
10
mm
Outer Diameter
22
mm
Width
12
mm
Stud Diameter
10
mm
Thread
M10x1.25
Length
12
mm
Length
4
mm
Length
1.0
mm
Maximum width
13.2
mm
Max.Total length
36
mm
Length
23
mm
Dimension
-
mm
Dimension
0.6
mm
Diameter
-
mm
Diameter
-
mm
Dimension
4
mm
rs min.
0.3
mm
Min.Dimension related to the installation
16
mm
Maximum tightening torque
13.8
Nm
Basic dynamic load rating
9570
N
Basic static load rating
14500
N
Max.Static allowable load
8650
N
Mass
46
g
