IKO CF121BUU

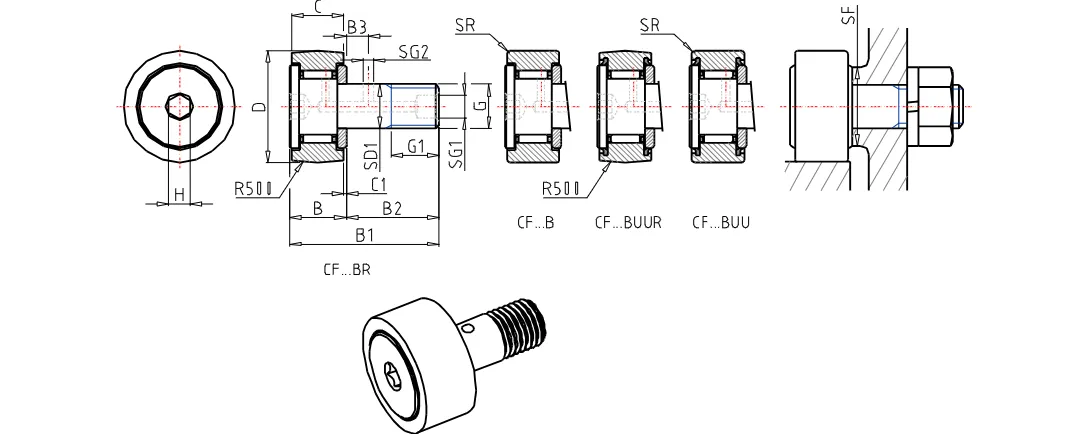

Standard Metric Cam Follower, Caged, High Carbon Steel, Cylindrical Outer Ring, Sealed, Hex Head,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

Detailed data of

CF121BUU

Order Number CF12-1BUU
Stud Diameter 12 mm
Inscribed circle diameter 12 mm
Outer Diameter 32 mm
Width 14 mm
Stud Diameter 12 mm
Thread M12x1.5 Length
13.0 mm
Maximum width 15.2 mm
Max.Total length 40.2 mm
Length 25.0 mm
Dimension 6 mm
Dimension 0.6 mm
Diameter 6 mm
Diameter 3 mm
Dimension 6.0 mm
rs min. 0.6 mm
Min.Dimension related to the installation 21.0 mm
Maximum tightening torque 21.90 Nm
Basic dynamic load rating 7910 N
Basic static load rating 9790 N
Max.Static allowable load 9790 N
Mass 105.0 g
