IKO CF121R

Standard Metric Cam Follower, Caged, High Carbon Steel, Crowned Outer Ring, Shielded, Screw Driver Slot,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

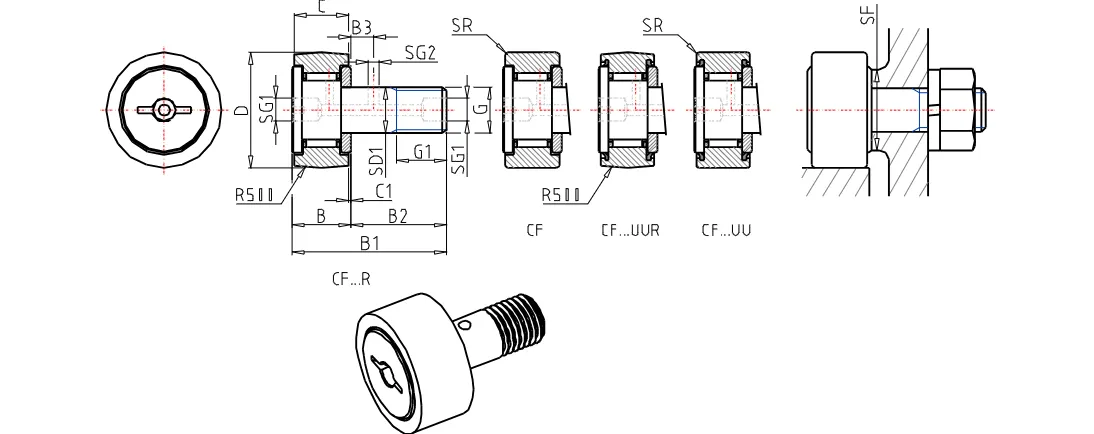

Detailed data of

CF121R

Order Number CF12-1R
Stud Diameter 12 mm
Outer Diameter 32 mm
Width 14 mm
Stud Diameter 12 mm
Thread M12x1.5 Length
13 mm
Maximum width 15 mm
Max.Total length 40 mm
Length 25 mm
Dimension 6 mm
Dimension 0.6 mm
Diameter 6.0 mm
Diameter 3 mm
rs min. - mm
Min.Dimension related to the installation 21.0 mm
Maximum tightening torque 21.90 Nm
Basic dynamic load rating 7910 N
Basic static load rating 9790 N
Max.Static allowable load 9790 N
Mass 105.0 g
