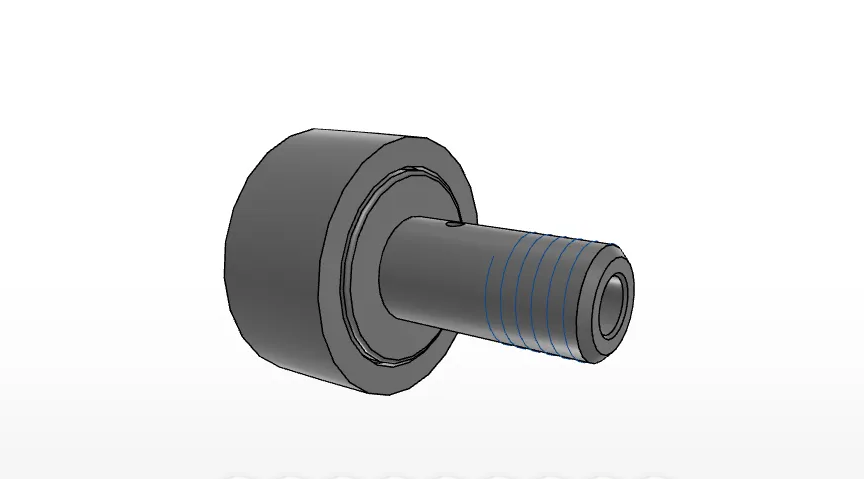

IKO CF12VR

Standard Metric Cam Follower, Full Complement, High Carbon Steel, Crowned Outer Ring, Shielded, Screw Driver Slot,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

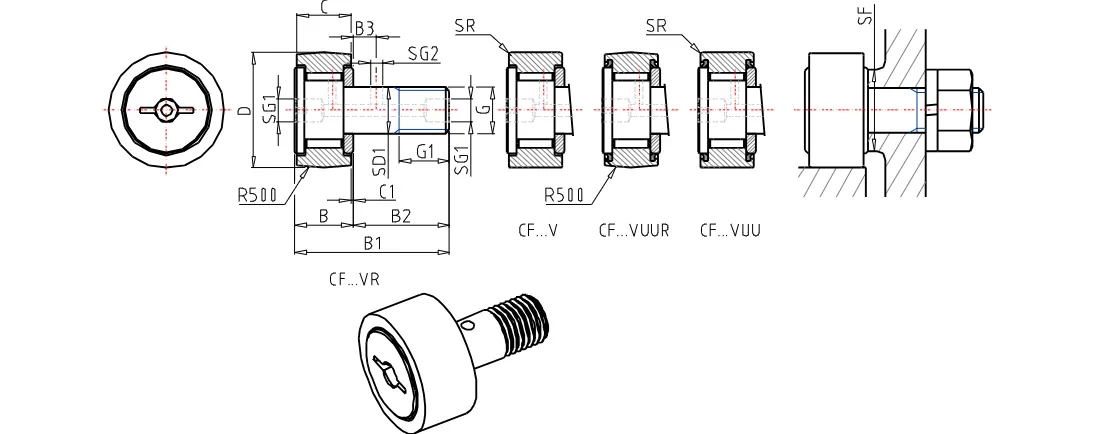

Detailed data of

CF12VR

Order Number CF12VR
Stud Diameter 12 mm
Outer Diameter 30 mm
Width 14 mm
Stud Diameter 12 mm
Thread M12x1.5 Length
13 mm
Maximum width 15.2 mm
Max.Total length 40.2 mm
Length 25.0 mm
Dimension 6 mm
Dimension 0.6 mm
Diameter 6 mm
Diameter 3 mm
rs min. 0.6 mm
Min.Dimension related to the installation 21 mm
Maximum tightening torque 21.9 Nm
Basic dynamic load rating 13500 N
Basic static load rating 19700 N
Max.Static allowable load 13200 N
Mass 97 g
