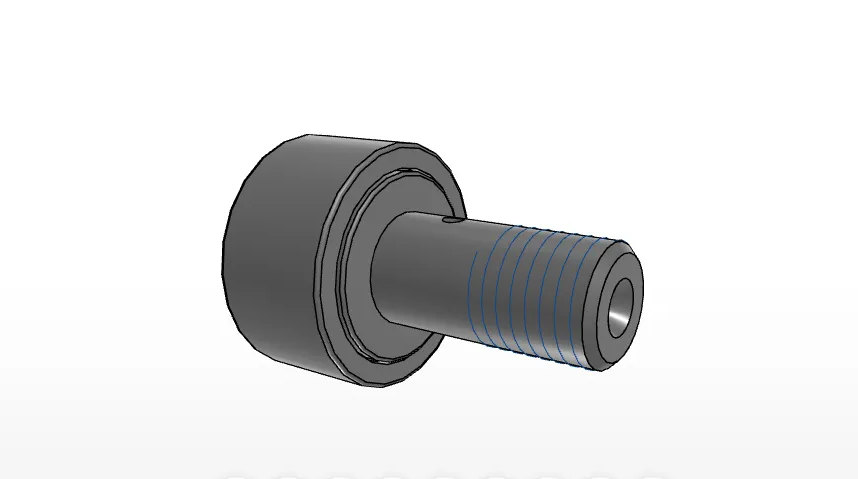

IKO CF16FB
Standard Metric Cam Follower, Caged, Stainless Steel, Cylindrical Outer Ring, Shielded, Hex Head,
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

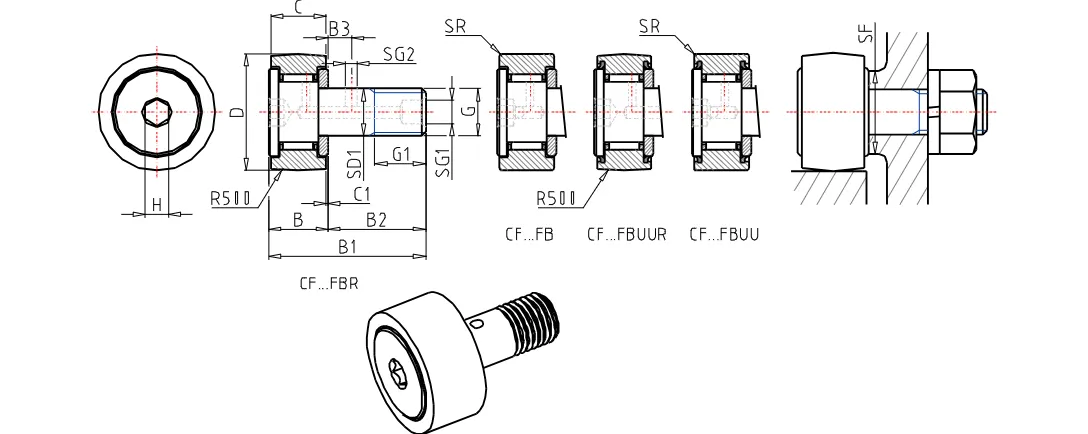

Order Number
CF16FB
Stud Diameter
16
mm
Outer Diameter
35
mm
Width
18
mm
Stud Diameter
16
mm
Thread
M16x1.5
Length
17.0
mm
Maximum width
19.6
mm
Max.Total length
52.1
mm
Length
32.5
mm
Dimension
8
mm
Dimension
0.8
mm
Diameter
6
mm
Diameter
3
mm
Dimension
6.0
mm
rs min.
0.6
mm
Min.Dimension related to the installation
26.0
mm
Maximum tightening torque
58.50
Nm
Basic dynamic load rating
9620
N
Basic static load rating
14700
N
Max.Static allowable load
14700
N
Mass
170.0
g
