IKO CF16FBUU

Standard Metric Cam Follower, Caged, Stainless Steel, Cylindrical Outer Ring, Sealed, Hex Head,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

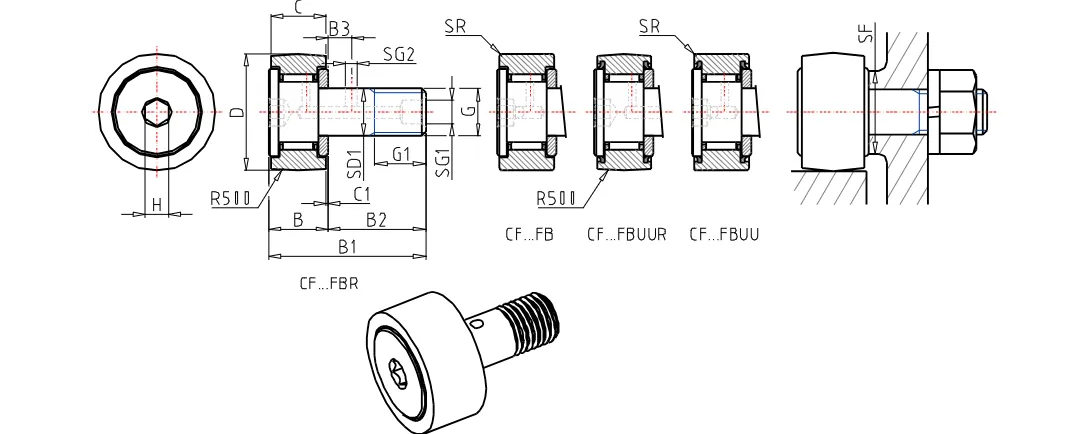

Detailed data of

CF16FBUU

Order Number CF16FBUU
Stud Diameter 16 mm
Outer Diameter 35 mm
Width 18 mm
Stud Diameter 16 mm
Thread M16x1.5 Length
17.0 mm
Maximum width 19.6 mm
Max.Total length 52.1 mm
Length 32.5 mm
Dimension 8 mm
Dimension 0.8 mm
Diameter 6 mm
Diameter 3 mm
Dimension 6.0 mm
rs min. 0.6 mm
Min.Dimension related to the installation 26.0 mm
Maximum tightening torque 58.50 Nm
Basic dynamic load rating 9620 N
Basic static load rating 14700 N
Max.Static allowable load 14700 N
Mass 170.0 g
