IKO CF18BUU

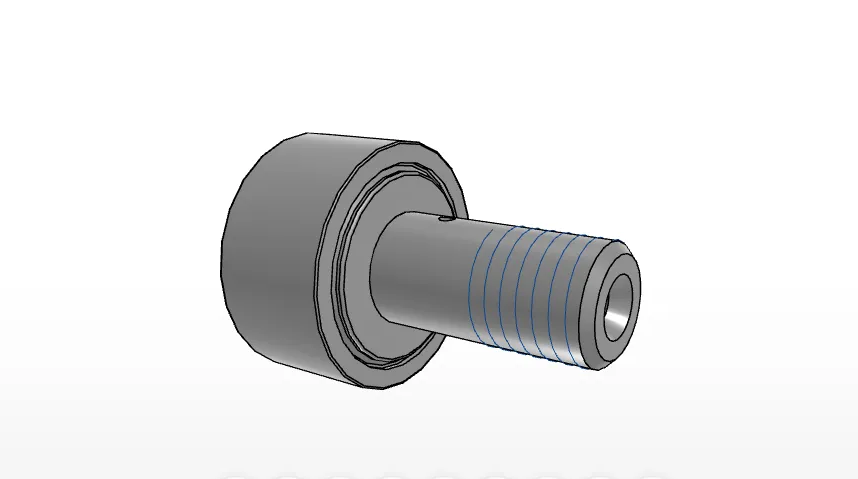

Standard Metric Cam Follower, Caged, High Carbon Steel, Cylindrical Outer Ring, Sealed, Hex Head,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

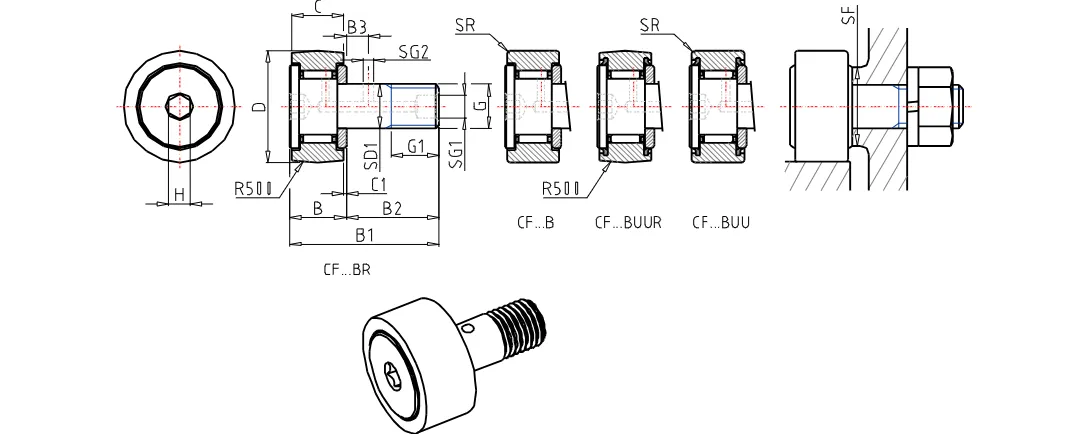

Detailed data of

CF18BUU

Order Number CF18BUU
Stud Diameter 18 mm
Inscribed circle diameter 18 mm
Outer Diameter 40 mm
Width 20 mm
Stud Diameter 18 mm
Thread M18x1.5 Length
19.0 mm
Maximum width 21.6 mm
Max.Total length 58.1 mm
Length 36.5 mm
Dimension 8 mm
Dimension 0.8 mm
Diameter 6 mm
Diameter 3 mm
Dimension 8.0 mm
rs min. 1 mm
Min.Dimension related to the installation 29.0 mm
Maximum tightening torque 86.20 Nm
Basic dynamic load rating 14800 N
Basic static load rating 25200 N
Max.Static allowable load 25200 N
Mass 250.0 g
