IKO CF18FBUU

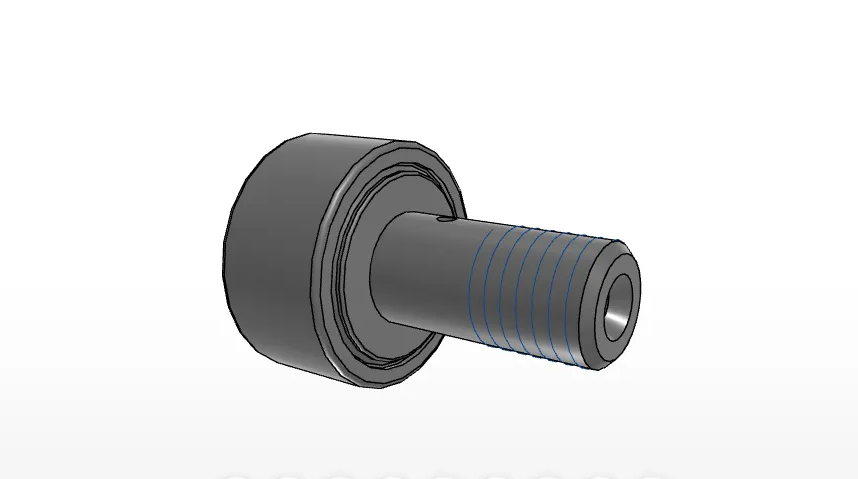

Standard Metric Cam Follower, Caged, Stainless Steel, Cylindrical Outer Ring, Sealed, Hex Head,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

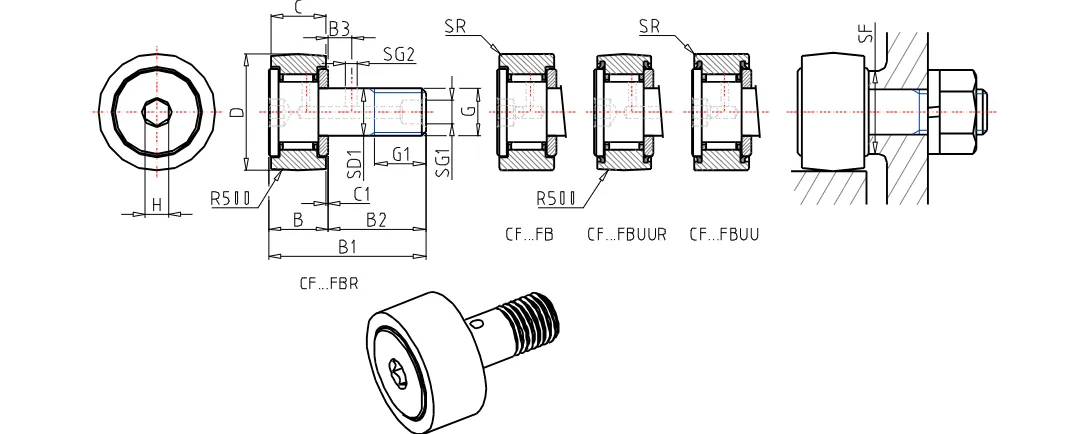

Detailed data of

CF18FBUU

Order Number CF18FBUU
Stud Diameter 18 mm
Outer Diameter 40 mm
Width 20 mm
Stud Diameter 18 mm
Thread M18x1.5 Length
19.0 mm
Maximum width 21.6 mm
Max.Total length 58.1 mm
Length 36.5 mm
Dimension 8 mm
Dimension 0.8 mm
Diameter 6 mm
Diameter 3 mm
Dimension 8.0 mm
rs min. 1 mm
Min.Dimension related to the installation 29.0 mm
Maximum tightening torque 86.20 Nm
Basic dynamic load rating 11800 N
Basic static load rating 20200 N
Max.Static allowable load 20200 N
Mass 250.0 g
